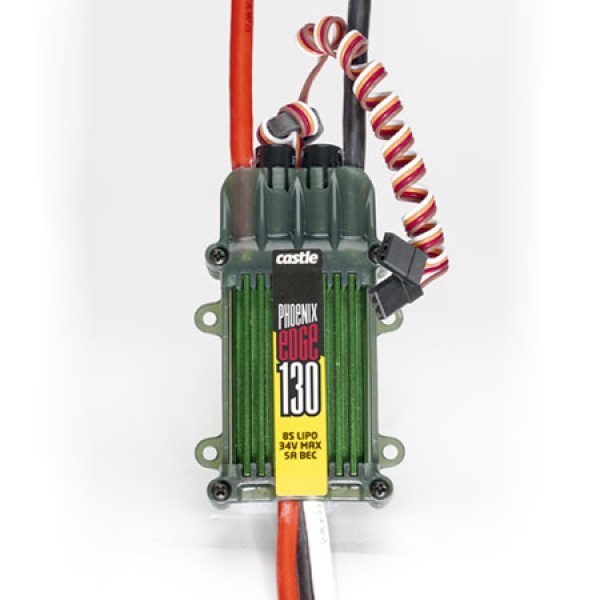

The Phoenix Edge 130 is a 130-Amp ESC with a user-programmable auxiliary wire which can be used for several purposes including:

  • Helicopter gain input adjustments mid-flight
  • Serving as an audible beacon after an unexpected landing
  • Acting as an RPM output for 3-axis gyros that support RPM sensors
  • Be used as an ESC arming lock (coupon for free Arming Lockout Key included)
  • Or as a a receiver arming lock

Combined with the data logging capability that Edge controllers are renowned for, you will experience great versatility with the Phoenix Edge 130. This speed controller also features leading software functions and USB programming capability with the Castle Link USB adapter (free with included coupon). This ESC is designed for 550-class or 600-class helicopters and 1.20-size fixed wing models and comes with a 5-Amp BEC. Order yours today.

  • User-programmable auxiliary wire for a wide range of functions
  • Excellent data logging capability
  • Leading software functions
  • USB programming capability
  • Designed for 550-class or 600-class helicopters and 1.20-size fixed wing models
  • Comes with a 5-Amp BEC
Heli Applications
550 Class, or 600 Class (use external BEC or RX/servo power source; not included)
Fixed Wing Applications
1.20
Input Voltage
Min: 2S LiPo Max: 8S LiPo
Max Continuous Amperage at Full Throttle
130 amps*
BEC Voltage (Voltage Regulator For Powering Radio and Sevos)
User selectable choice from 5 to 8.4 volt output
BEC Output Amperage
5 amp peak**
Width
2.0" (50.8mm)
Length
3.3" (83.6mm)
Height
0.9" (23.2mm)
Weight w/ Wires
5.3 oz (150.6g)
Weight w/o Wires
3.0 oz (86.6g)
Programmability
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software. Castle Field Link Programming Card (sold separately) compatible for select functions.
Connectors
Battery and motor connectors sold separately
Tools Needed for Installation
Soldering iron and solder to attach bullets to motor wires and battery connector to power wires.
*RC HOBBY APPLICATION RATING: 130 amps for the duration of a single 10,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature. **Peak indicates amperage sustainable for 0.5 seconds – long enough for most servos’ current draw transients. Your setup may vary. Always confirm servo current draw before the first flight of the model.
SKU CSE010009900
Brand CASTLE CREATIONS
