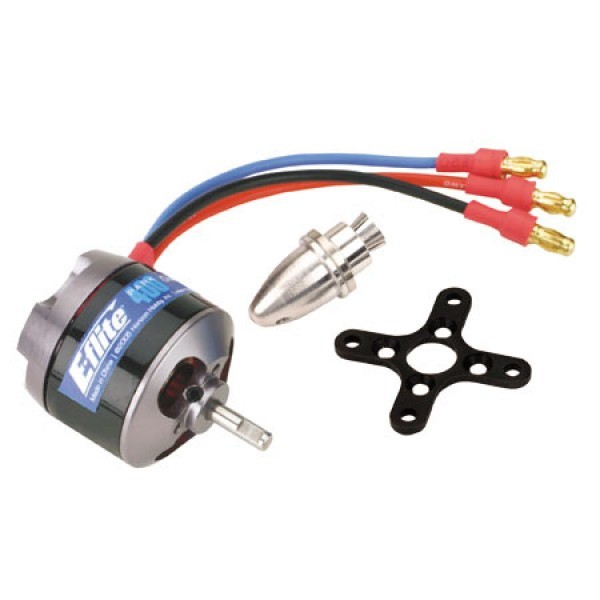

The great performance and small size of this engine makes it perfect for small 3D and other park flyer models. The external rotor design eliminates the need for a gearbox, saving you valuable weight to get the maximum performance out of the model.
  • Slotted 12-pole outrunner design
  • Prop adapter (EFLM1923) and gold-plated connectors included
  • Excellent motor for small 3D and scale park flyers weighing 10–20 oz (280–560 g)
  • Motor mount included
  • Replacement for Speed 370 and Speed 400 applications
  • Quiet operation\low noise compared to gearbox systems
Type
Brushless
Size
Replacement for 370/400
Bearings or Bushings
One 3.175 x 7.94 x 3.6 Bearing, and One 3.175 x 9.525 x 3.97 Bearing
Recommended Prop Range
10x4.7-12x3.8
Voltage
7.2–12
RPM/Volt (Kv)
740 (rpms per volt)
Resistance (Ri)
.26 ohms
Idle Current (Io)
.55 @ 10V (no load current)
Shaft Diameter
1/8 in (3.17mm)
Overall Length
1.15 in (29mm)
Weight
56 g (2.0 oz)
Overall Diameter
1.10 in (28mm)
Diameter
1.1 in (28mm)
Continuous Current
7A
Maximum Burst Current
10A
Cells
6–10 Ni-Cd/Ni-MH or 2–3 Li-Po
Speed Control
10–20 amp brushless
SKU EFLM1300
Barcode # EFLM1300
Brand E-Flite
Shipping Weight 0.2000kg
