Designed to reduce electrical installation time and to increase efficiency. These easy-to-use connectors eliminates the need  to strip, twist and crimp connect wires. Simply insert your wire into the clamp opening and snap it shut using your hands or small pliers depending on wire gauge to make the connection. The precision-sharpened connector blades borrows the IDC  configuration that cut through the wires create a connection.

Available in two shapes - "I" type and "T" type. "I" type are used for end to end connections whereas the "T" type for parallel connections. Ideal for applications such as: low voltage LEDs, residential, automotive, communication and broadcasting.

Features:
•    Avoid stripping, twisting or crimping cables together
•    Eliminates need to tape cables
•    Creates an IP33 connection
•    Electrically Safety approved
•    Handles up to 600VAC
•    RoHS compliant

PT-4640
In-line I Type 3A (Pack of 6):
•    Suitable for cable between 27-20 (AWG), Cross section (mm2): 0.2-0.5
•    Max current (240VAC): 3A
•    Connection loss (Ohm): 0.0018
•    Dimensions: 25(L) x 5.5(W) x 5.5(H)mm
•    Weight: 0.8g

PT-4641
In-line I Type 10A (Pack of 4):
•    Suitable for cable between 19-17 (AWG), Cross section (mm2): 0.75
•    Max current (240VAC): 10A
•    Connection loss (Ohm): 0.0010
•    Dimensions: 30(L) x 6(W) x 6(H)mm
•    Weight: 1g

PT-4643
In-line I Type 20A (Pack of 2):
•    Suitable for cable between 13-12 (AWG), Cross section (mm2): 2.5
•    Max current (240VAC): 20A
•    Connection loss (Ohm): 0.0001
•    Dimensions: 36(L) x 7.7(W) x 7.7(H)mm
•    Weight: 2.5g

PT-4650
Parallel T Type 3A (Pack of 6):
•    Suitable for cable between 27-20 (AWG), Cross section (mm2): 0.2-0.5
•    Connection loss (Ohm): 0.0018
•    Max current (240VAC): 3A
•    Dimensions: 25(L) x 5.5(W) x 5.5(H)mm
•    Weight: 1g

PT4651
Parallel T Type 10A (Pack of 4):
•    Suitable for cable between 19-17 (AWG), Cross section (mm2): 0.75
•    Max current (240VAC): 10A
•    Connection loss (Ohm): 0.0010
•    Dimensions: 30(L) x 6(W) x 6(H)mm
•    Weight: 1.6g

PT-4653

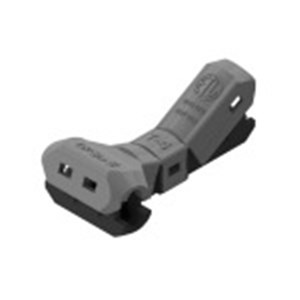

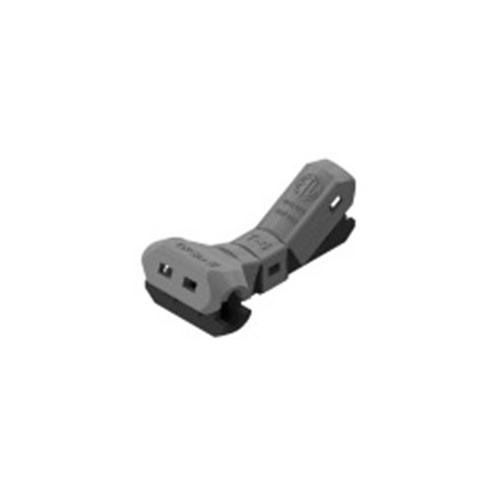

Parallel T Type 20A (Pack of 2):
•    Suitable for cable between 13-12 (AWG), Cross section (mm2): 2.5
•    Max current (240VAC): 20A
•    Connection loss (Ohm): 0.0001
•    Dimensions: 37(L) x 7.7(W) x 7.7(H)mm
•    Weight: 3.3g
SKU AM-PT4653
Model # PT4653
Barcode # 9319236446386
