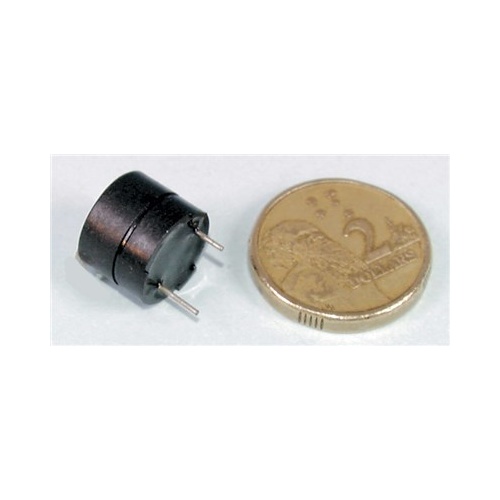

This buzzer is ideal when you need to fit a buzzer in a small place. It has its own built- in drive circuit. It offers low current consumption and its sealed for DIP soldering and washing. Used in manufacturing applications such as - laptops, alarms, pagers, etc.

Specifications
- Operation Voltage: 9-14V
- Rated Voltage: 12V
- Current: 30mA
- SPL: 85dBA/10cm
- Frequency: 2,300Hz
- Operating Temp: - 20° to +65°C
- Weight: 2.4 gram
- Size: 9.5(H) x 12 diameter
- Pin Spacing: 7.6mm.
SKU AM-AB3459
Model # AB3459
Barcode # 9319236032398
