This compact amplifier can deliver 10W per channel stereo or 30W mono, and is powered by DC so it could be used for busking running of a battery. Output power depends on operating voltage (8 to 25VDC) speaker impedance (4 to 8 Ohm) used. With a 12VDC supply it can deliver 7.5W per channel into 8-ohm speakers or 2 x 15W into 4-ohm loads. Being highly efficient there is no need for a heatsink!

Features:
- Up to 91% efficient
- Selectable gain
- On-board volume control
- Low-power shutdown mode
- Over-temperature, over-current, short circuit and speaker protection.
- PCB: 85 x 46mm

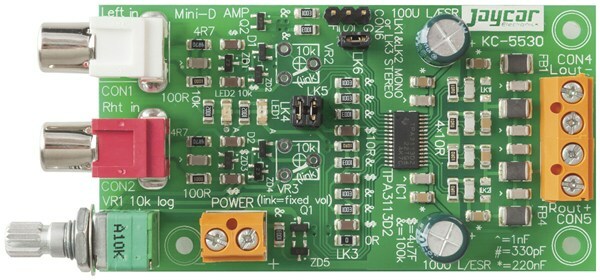

Supplied with double sided, solder-masked and screen-printed PCB, and ALL SMD components pre-soldered to the PCB to save you the hassle of soldering them yourself.

SKU AM-KC5530
Model # KC5530
Barcode # 9319236366028
