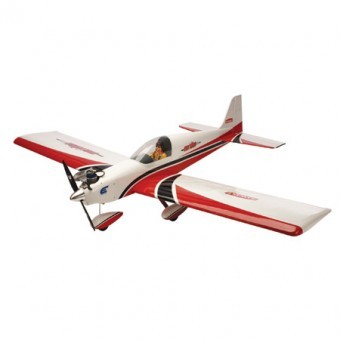

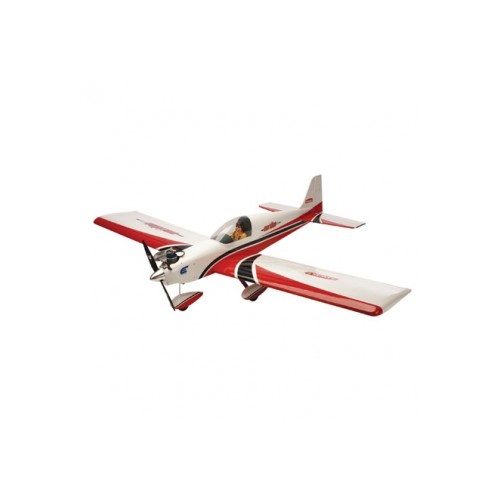

The Hangar 9® Meridian 10cc ARF aircraft embodies the pure joy of what RC sport flying is about. From its long fuselage and stylishly shaped tail surfaces to the super stability of its generously proportioned constant-chord wing, every feature ties together. A perfect next-level sport airplane designed to have familiar forgiving manners, it appeals to the veteran and novice RC pilot. Its exceptional construction is lightweight without sacrificing strength or rigidity and is oversized just enough to deliver better visibility and great handling. In addition, its functional flaps add a level of capability that complements the ease and grace in which this low-wing model performs sport aerobatics and smooth landings.

The Meridian model shines when powered with the Evolution® 10cc gas engine. Besides the thrilling experience this engine offers, you’ll enjoy the ease of use and reliability that outclasses the hassles and expense of using glow fuel. Because the Evolution 10cc gas engine is so economical, you’ll carry less fuel in the airplane, which means less weight for the same amount of flight time.

  • Designed to fit the Evolution® 10cc gas engine
  • Flaps for expanded flight envelope
  • Tricycle landing gear
  • Covered in genuine UltraCote® covering
  • Landing gear attached to fuselage
  • Large top fuselage hatch for easy access to radio gear and EP battery
  • Pre-painted fiberglass cowl and wheel pants
  • EP-ready
  • Two-piece plug-in wings
  • Preinstalled pilot figure and instrument panel
Wingspan
69.0 in (175 cm)
Overall Length
55.5 in (140 cm)
Wing Area
880 sq in (56.8 sq dm)
Flying Weight
7.0–8.0 lb (3.2–3.7 kg)
Engine Size
10cc gas; 0.52-0.61 2-stroke glow; 0.62-0.72 4-stroke glow
Motor Size
Power 46
Radio
5-channel radio system minimum
Servos
7 standard servos (6 for EP)
Trim Scheme Colors
UltraCote® covering - True Red (U866), White (U870), Black (U874)
CG (center of gravity)
3.3-3.8 in (84-96mm) behind the leading edge
Wing Loading
18.3–20.9 oz/sq ft (56.3–65.1 g/sq dm)
Prop Size
12 x 6–13 x 6 (10cc); 14 x 7E (EP)
Spinner Size
2.25 in (57mm)
Recommended Battery
14.8V 4S 4000mAh Li-Po
Flaps
Yes
Retracts
No
Control Throw (Ailerons)
Low: 0.5 in (13mm) up/down; High: 0.75 in (19mm) up/down; 20% Expo
Control Throw (Elevator)
Low: 0.75 in (19mm) up/down; High: 1.0 in (25mm) up/down; 20% Expo
Control Throw (Rudder)
Low: 1.0 in (25mm) left/right; High: 1.5 in (38mm) left/right; 20% Expo
Control Throw (Flaps)
0.75 in (19mm) mid flap; 1.50 in (38mm) full flap
Minimum Age Recommendation
14 years
Experience Level
Intermediate
Recommended Environment
Outdoor
Assembly Time
10-15 Hours
Is Assembly Required
Yes
SKU HAN5015
Barcode # HAN5015
Brand Hangar 9
Shipping Weight 5.0000kg
