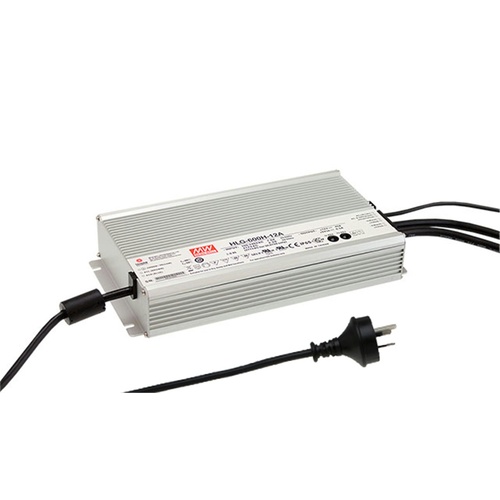

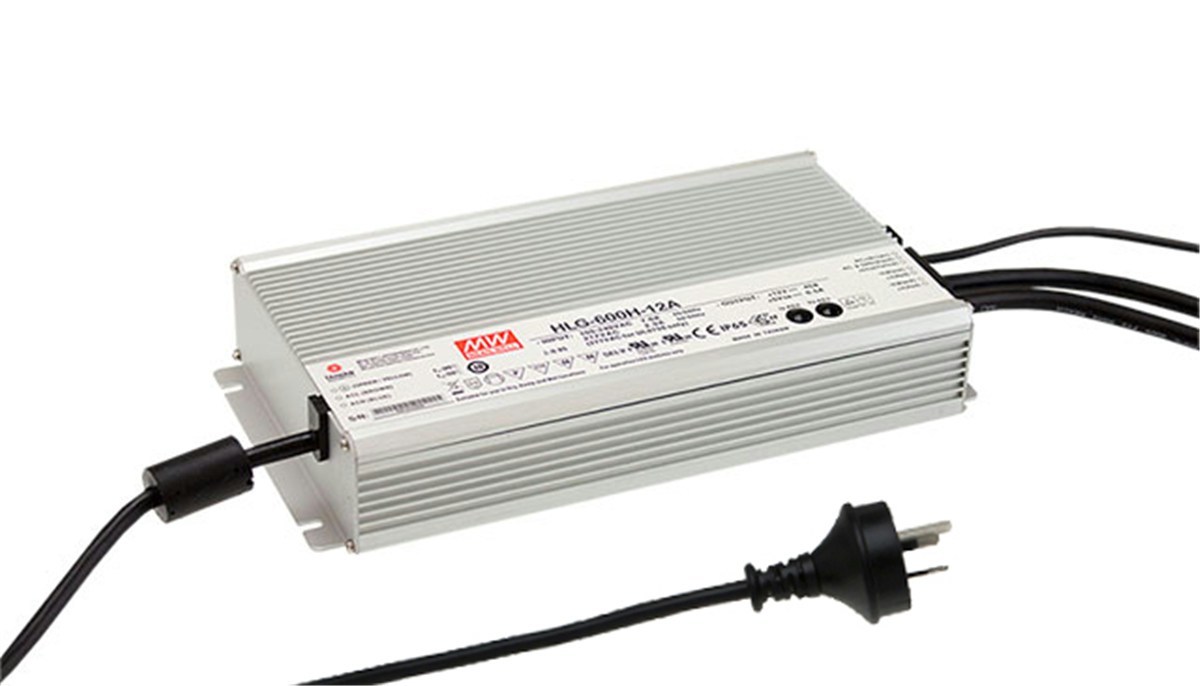

401569 HLG-600H series is a high power AC/DC LED driver featuring dual mode constant voltage and constant current output. HLG-600H operates from 90-305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96% and fanless design, the entire series is able to operate for -40 to +90°C case temperature under free air convection. The metal housing and IP65 or greater ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.Applications:• LED high-bay lighting• Parking space lighting• LED stage and event lighting• LED greenhouse lightingSpecifications:• Model: HLG-600H-54B• Rated Current: 11.2A• Rated Power: 600W• Nominal Voltage: 54VDC• Output Function: 3 in 1 dimming• Input Voltage: 90-305VAC or 127-431VDC• Input Connection: Pre-wired with 3 pin AU/NZ Mains Plug• IP Rating: IP67
SKU AM-401569
Model # 401569
