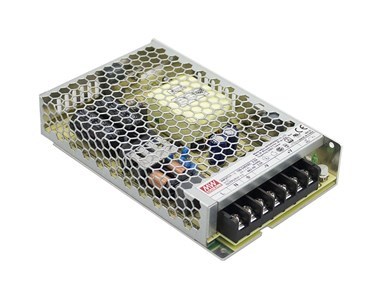

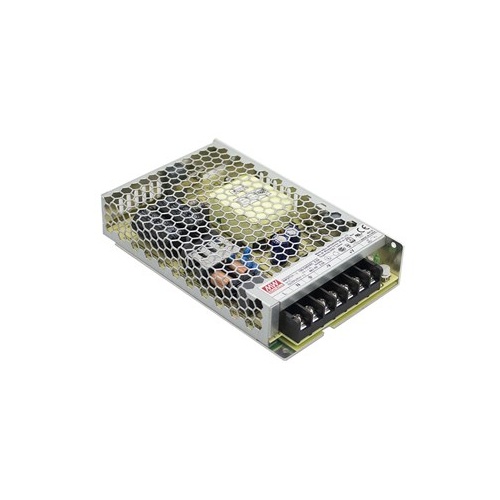

A highly efficient, fixed voltage, no load low power (<0.2~0.75W) consumption enclosed power supply for a wide range of industrial applications. It is more compact and efficient than previous generation models. The 30mm low profile design allows it to be built into 1U rack enclosures, while the metallic mesh case enhances the heat dissipation. It is also capable of operating at altitudes up to 5000 metres. Not only will it satisfy every kind of industrial related application but can also be utilised for household appliances thus accounting for a broader coverage across diverse industries. See our website for a full datasheet. Backed by 3 year warranty.

Features:
 • Full range 85~264VAC input
 • Withstand 300VAC surge input for 5 seconds
 • High efficiency, long life and high reliability
 • Operates from -30°C to 70°C under air convection without a fan
 • Extremely low no load power consumption
 • Complete protective functions
 • Power on LED indicator
 • 5G anti-vibration capability
 • Complies with international safety standards.
 • 100% full load burn-in test
 • 3 year warranty

Specifications:
Output Voltage: 12VDC
Tolerance: +/- 1.0%
Ripple & Noise: 150mV
Output Current: 12.5
Efficiency: 87.5%
Input Frequency: 47-63Hz
Cold Start Inrush Current: 60A
Weight: 480g
Dimensions: 159(L) x 97(W) x 30(H)mm
SKU AM-MP3291
Model # MP3291
Barcode # 9319236712863
