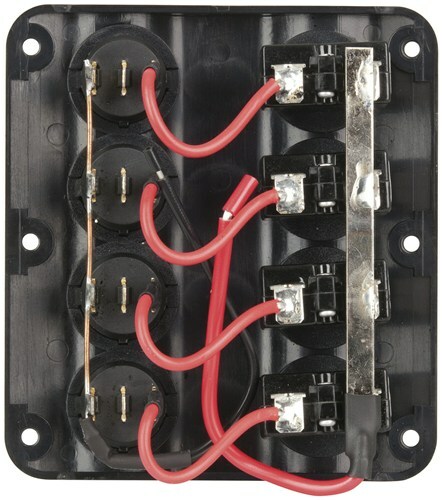

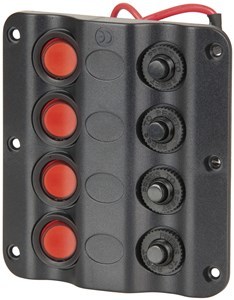

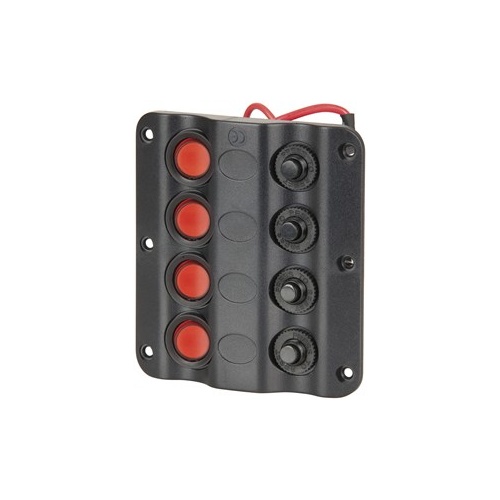

This panel meausres 100 x 110 overall and can be mounted either vertically or horizontally. The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector. They are then soldered to a 10A rated illuminated rocker switch. The rocker switches have 4.8 QC tabs and are single pole type. The circuit breakers are rated thus: 10A, 8A, 6A and 4A which is quite handy really.

There is a negative common bus to the switches which when connected, enables the actuator to glow red when 'on'.

• Dimensions: 110(H) x 100(W) x 45(D)mm

Also available:
SZ1903 - 6 Way Illuminated Marine Switch Panel, dimensions 160(H) x 100(W) x 45(D)mm

SKU AM-SZ1902
Model # SZ1902
Barcode # 9319236985359
Brand POWERTECH
Shipping Weight 0.5000kg
