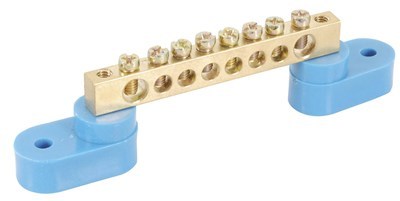

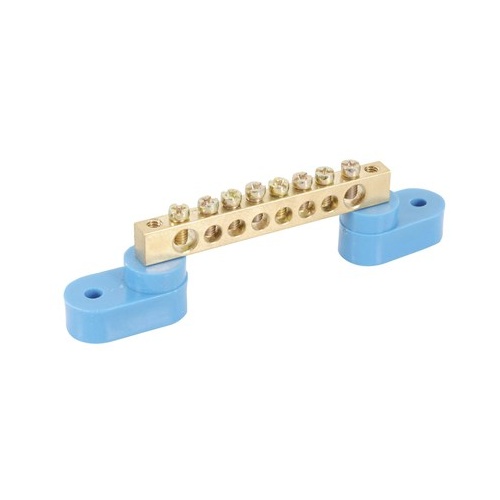

These are usually used to give an electrically common point for each wiring but are also useful for low voltage tie points, especially on boats or RV's, Caravans etc., 6 holes accept up to a 4.5mm wire bundle and the outer 2 a 6.0 bundle. The Busbar has insulated standoffs at each end, which can be removed so that the assembly can be screwed directly to a chassis. The standoffs have a conservative insulation rating of 1000V.

• All screws M4.0 Brass bar 9.0 x 6.0
• Length overall including standoffs: 100mm, without standoffs: 65mm.

SKU AM-SZ2003
Model # SZ2003
Barcode # 9319236969564
Shipping Weight 0.0500kg
