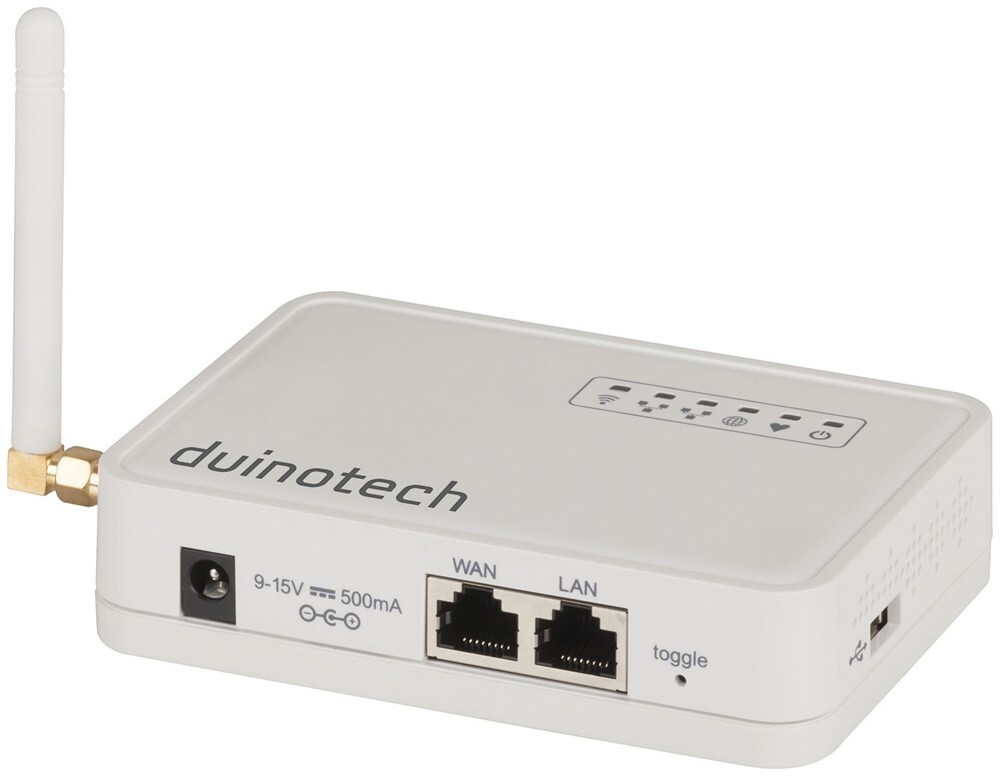

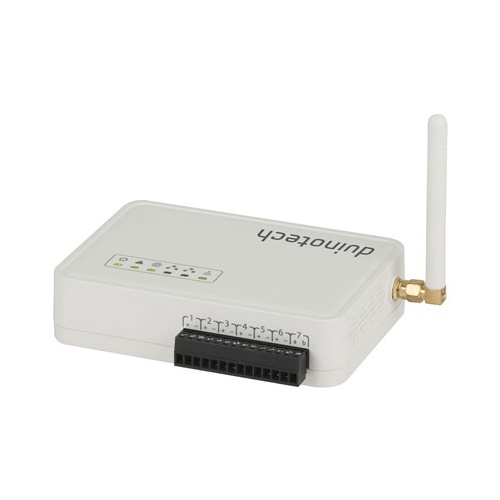

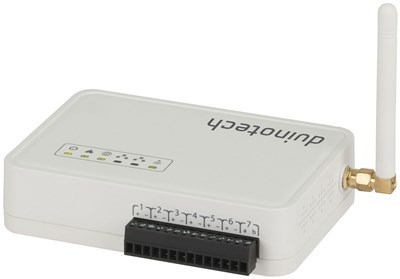

Getting Internet of Things (IoT) devices connected has never been easier. This LoRa/Wi-Fi gateway provides connectivity with 3G/4G access (USB 3G/4G dongle required), or via the WAN port for your existing network. LoRa is the latest technology being used by Arduino devices for powerful connectivity, and this will get your LoRa devices online faster and better than ever before. It’s highly customisable, using the open source OpenWrt system, you can even upload your own Arduino Sketch using the Arduino IDE. In addition to to all the awesome LoRa technology, it’s a configurable access point using WiFi client/access/mesh modes, with dual ethernet ports for WAN connectivity too. A web-based configuration console is also provided for quick and simple setup.

Features:
- LoRa and Wi-Fi connectivity
- Cloud-based remote management
- Detachable high-gain antenna

Specifications:
Linux Hardware:
           Processor: 400MHz AR9331 Processor
           Memory: 16MB Flash, 64MB SDRAM
MCU Hardware:
           Processor: ATMega328P
           Memory: 32kB Flash, 2kB SRAM, 1kB EEPROM
Ports: 2 x RJ45 (WAN, LAN)
Wi-Fi:
           Standards: IEEE 802.11b/g/n
           Gain: 18dB Max.
LoRa:
           Frequency: 915MHz
           Bit Rate: 300kbps Max
Frequency Band: 2.4GHz
Power: 12VDC @ 1A (mains power supply included)

SKU AM-XC4394
Model # XC4394
Barcode # 9319236725047
