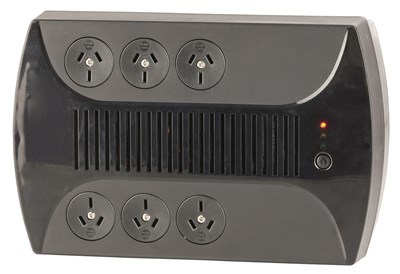

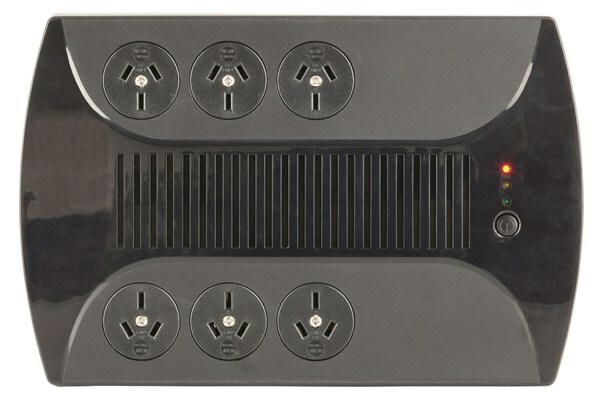

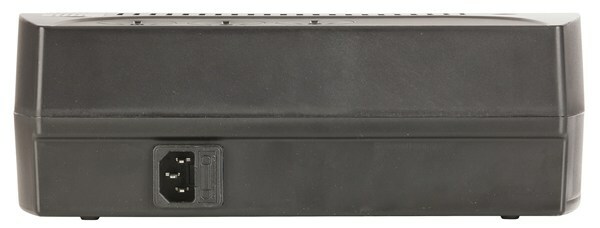

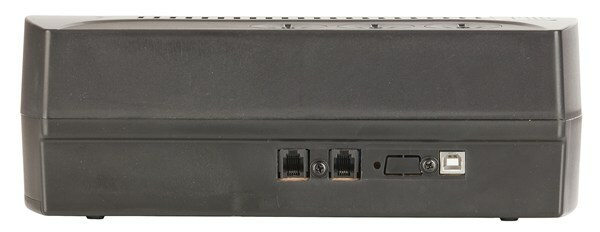

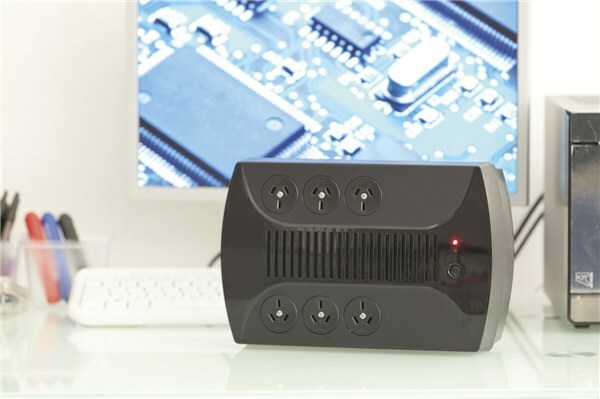

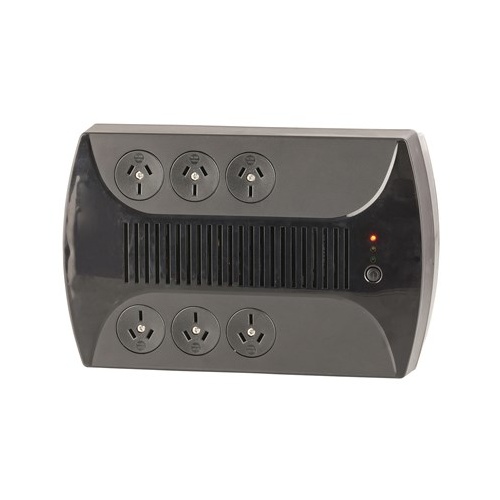

Keep your devices running when the grid goes down or give yourself enough time to power down safely. This self contained UPS is ideal for the home PC, point of sale machines, or workstations and peripherals. Features include intelligent CPU control, highly synchronous transfer (less than 6ms), automatic battery charging in UPS off mode, surge protection, voltage overload/low voltage protection and much more. There is a USB socket for connecting to your PC and software is provided to enable automated shut down, as well as RJ12 sockets for telephone protection.

Specifications:
• Rating: 600VA 300W
• SLA Battery: 12V/7.0Ah battery
• Supply voltage: 100-240VAC
• Output Voltage:100-240VAC
• Backup time: Up to 5 mins
• Switch over time: <-6ms
• Noise: <45db (at 1 metre)
• Recharge time: 90% capacity after 8 hours
• Output waveform: Sine Wave (Mains), Modified Sine Wave (Battery)
• Power outlets: 3 UPS, 3 Mains (all surge protected)
• USB Output: 1
• RJ12 input & Output: 1
• Dimensions: 280(W) x 185(D) x 95(H)mm• Note: Must be powered from the mains or a pure sinewave source (inverter,etc)

UPS Backup Time Test Results
Max. Load Backup Mode Backup Time - Typical
Cat No. VA W Internal SLA
Battery Output Waveform Transfer Time (ms) Small PC
(65W - 70W) Medium PC & LCD Monitor
(130W - 140W) Large PC & LCD Monitor
(190W - 210W)

MP5224 600 300 12V/7Ah x 1 Stepped Sine Wave < 10 31mins 11mins 4.5mins
MP5201 650 360 12V/7Ah x 1 Stepped Sine Wave < 10 25mins 9mins 5mins
MP5203 1500 750 12V/9Ah x 2 Stepped Sine Wave < 10 94mins 49mins 31mins
MP5205 650 390 12V/7Ah x 1 Stepped Sine Wave < 10 25mins 9mins 5mins
MP5207 1500 900 12V/9Ah x 2 Stepped Sine Wave < 10 94mins 49mins 31mins
MP5212 1000 700 12V/7Ah x 3 Pure Sine Wave Instant 95mins 47mins 32mins
SKU AM-MP5224
Model # MP5224
Barcode # 9319236983591
