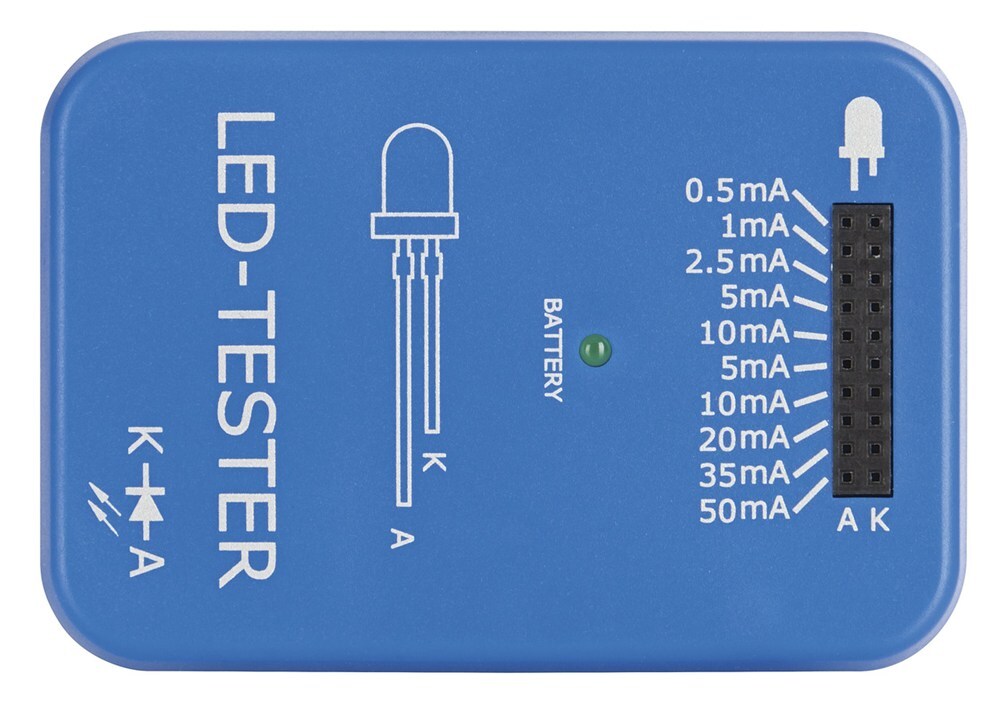

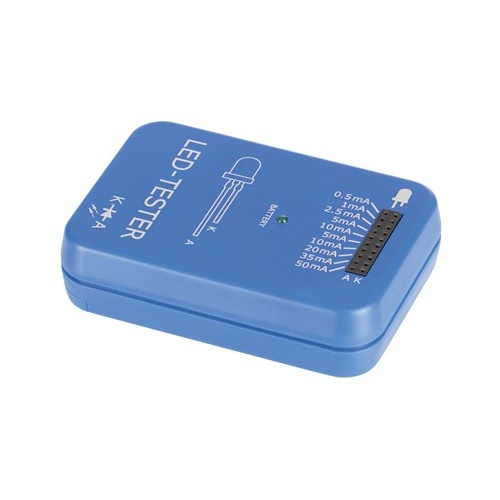

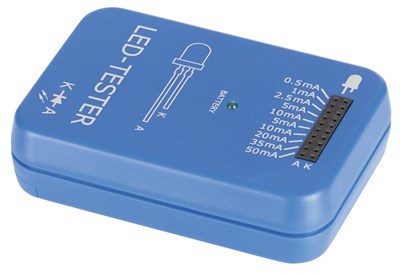

With this basic but essential tool it is possible to check the function, brightness, colour and polarity of most kinds of light emitting diodes (LED). The LED to be tested plugs into the front panel, at the current you wish to test it with. Two 10 mA positions have been included on this multi-LED tester so that comparisons between two LEDs can be made simultaneously.

Specifications:
• Operating voltage: 9 V
• 9V battery required
• Test currents: 1mA, 2.5mA, 5mA, 10mA, 20mA,50mA
• Dimensions: 58 x 44 x 25 mm
SKU AM-AA0274
Model # AA0274
Barcode # 9319236982945
