Features:
- Surface mount construction for reliability
- 0.1 launcher connections
- Brightness matched LEDs
- Superbright LEDs
- Attractive bezel with mounting clips
- 5V powered, TTL compatible

Specifications:

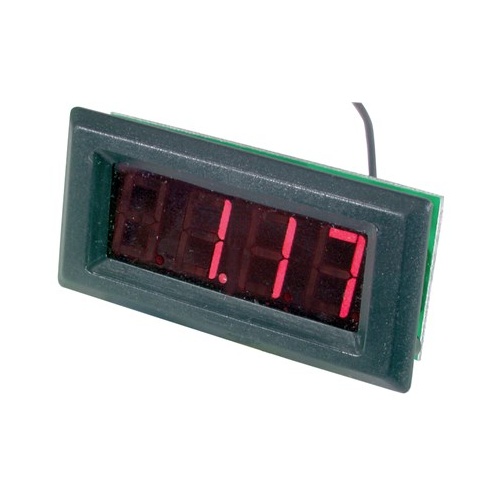

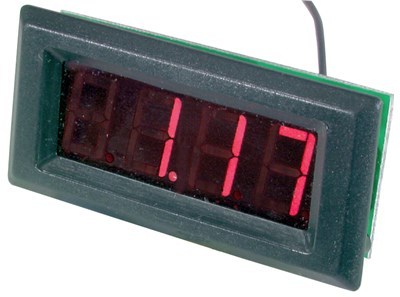

- Type of display: LED, red super bright
- Digits: 3 1/2digits (1999) 14.2mm figure height
- Polariy: Automatic (-) for negative value
- Power: 5V powered, common ground
- Decimal point: User selectable
- Over range: Display blinks
- Input (Analog)
- Full scale range: 200mV
- Configuration: True differential input and reference
- Bias current: 10pA maximum
- Impedence: 10M
- Accuracy: ±(0.1%rdg.+2dgt.)
- Conversion rate: 2.5 per second
- Com Mode Votage: ±1V maximum
- Com Mode Reject: >86 decibels
- Zeroing: Automatic
- Tempco: Standard + 100ppm/°C
- Operating Temp: Standard 0 to 50°C
- Storage Temp: Standard - 20 to 70°C
- Mounting: Window plug-in with clip
- Connection Pins: 10 pins
- Size: 68.5(W) x 33(H) x 16(D)mm
- Panel Cutout Size: 64(W) x 28(H)mm.
SKU AM-QP5580
Model # QP5580
Barcode # 9319236843291
