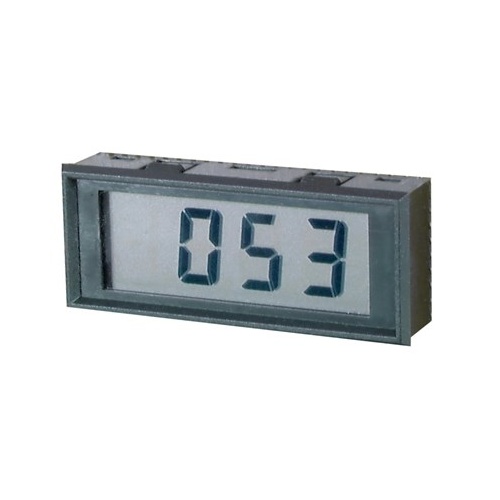

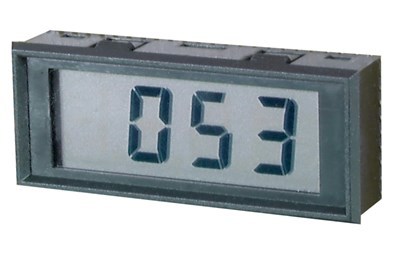

Features:
- Attractive modern bezel
- Snap retaining into panel
- Shallow depth
- User selectable decimal point
- 0.1 launcher connections

Specifications:
- Type of display: LCD
- Digits: 3 1/2digits (1999) 12.7mm figure height
- Polariy: Automatic (- ) for negative value
- Power: 5V powered
- Decimal point: User selectable
- Over range: Display flashes 1
- Input (Analog)
- Full scale range: 200mV
- Configuration: True differential input and reference
- Bias current: 10pA maximum
- Impedence: 10M
- Accuracy: ±(0.1%rdg.+1dgt.)
- Conversion rate: 2.5 per second
- Com Mode Votage: ±1V maximum
- Com Mode Reject: >86 decibels
- Zeroing: Automatic
- Tempco: Standard + 100ppm/°C
- Operating Temp: Standard 0 to 50°C
- Storage Temp: Standard - 20 to 70°C
- Mounting: Window plug-in
- Connection Pins: 13 pins
- Size: 62(W) x 25(H) x 15(D)mm
- Panel Cutout Size: 60.5(W) x 24(H)mm.

Please note: LCD panel meter can have common ground but not with 200mv input, unless a split rail power supply or an althernative connection is used.
SKU AM-QP5570
Model # QP5570
Barcode # 9319236843284
