The first OPTIMA model was heralded as a technical masterpiece at its release in 1985, and from then, Kyosho has set the standard in R/C development. Memories of the OPTIMA are fresh even after 30 years, and its stylish form and ruthlessly efficient performance still resonate amongst modern racing machines. Now the new OPTIMA is ready to continue the battle for racing dominance, embodying the latest technological evolution but with the distinctive OPTIMA style. The narrow backbone shaped chassis provides optimal geometry with large steering angles and double wishbone suspension with a long 35mm suspension stroke. Recreated in the original design image, the 4WD chain system is housed inside a sealed compartment, and the gears and gearbox at the centre of the drive train are equipped with robust metal counter gear pinion and rear diff case. The drive train also features a slipper clutch and precision 48-pitch gear modules that reduce drive loss and fulfil the potential of modern power sources. Modern features include the choice of chain drive or belt drive and big bore shocks on the front and rear that have been recreated in the original OPTIMA colours, plus hex screws. As a true racing partner, the OPTIMA is ready to race again with the latest advancements in driving performance.

Kyosho Optima 4WD Optimal Performance

The “OPTIMA” name signifies optimal performance. This famous off-road racer is equipped to win in any conditions.

Kyosho Optima 4WD 6061T6 Aluminium

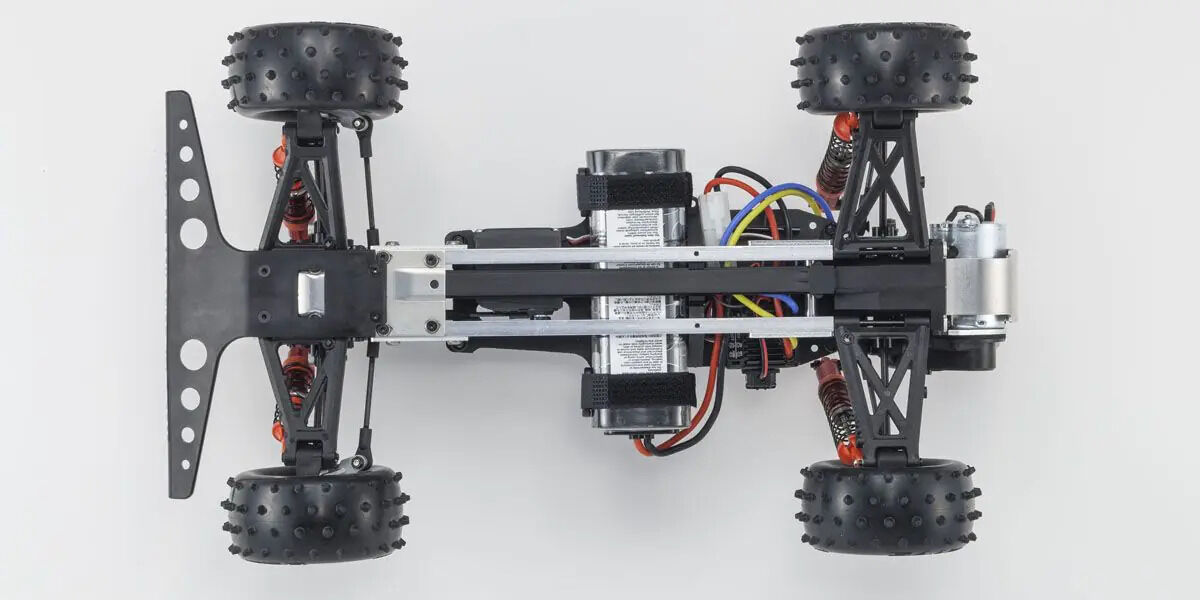

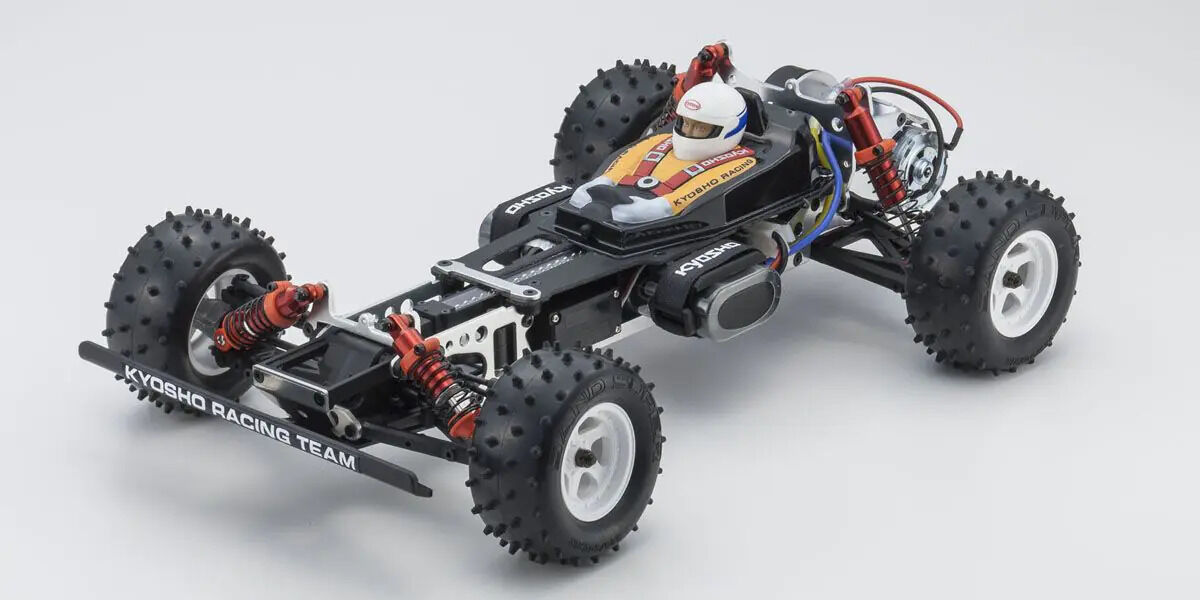

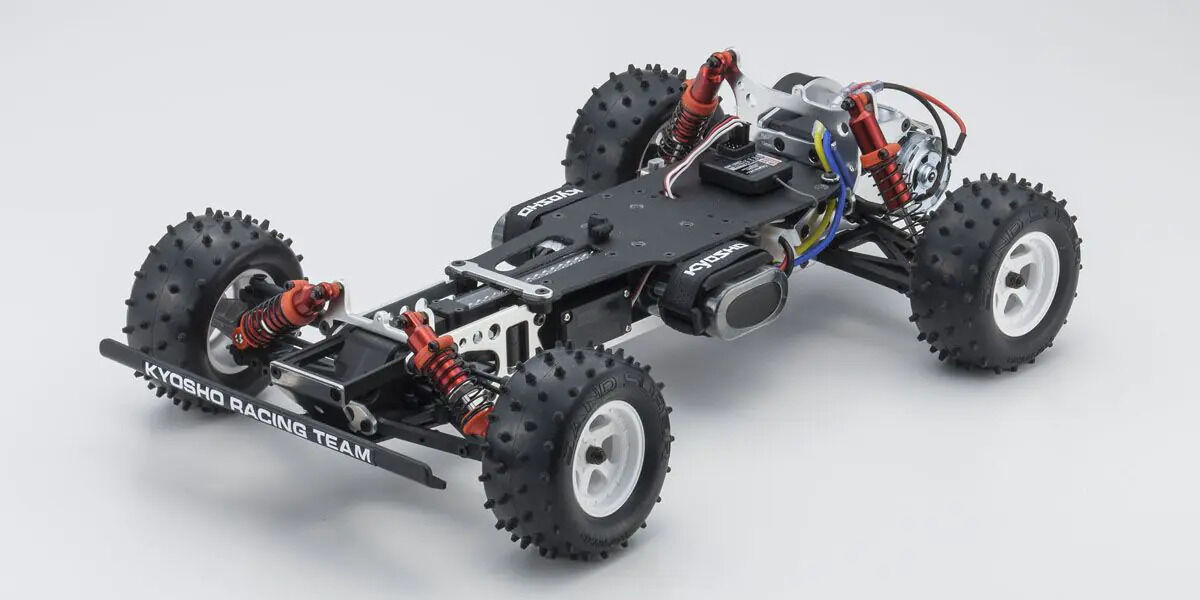

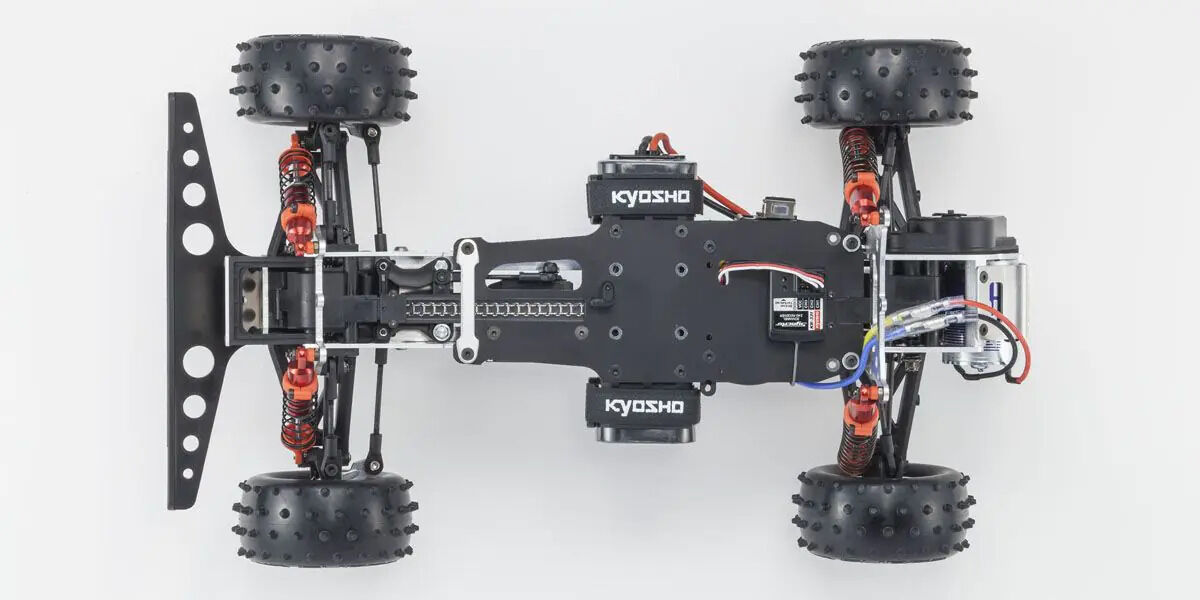

4WD mechanics are condensed into a narrow open frame chassis 6061T6 aluminium bars (counter sunk)

Kyosho Optima 4WD Chain Or Belt Driven

Two drive system selections: chain drive or belt drive.

Kyosho Optima 4WD Slipper Clutch

Gearbox equipped with slipper clutch for transmission protection and effective traction control.

Kyosho Optima 4WD 48-Pitch Alloy Gears

Precision 48-pitch gear modules. Sintered alloy gears combined with high impact nylon gears and newly added slipper clutch. This durable design allows efficient power delivery and will cope with the current high power motors.

Kyosho Optima 4WD Metal Diff Gears

Precision 48-pitch gear modules deliver reduced drive loss. Metal rear diff case and metal gears deliver excellent durability.

Kyosho Optima 4WD Glass Nylon Double Wish-bone Suspension

Glass mixed nylon material used in rigid double wishbone system suspension.

Kyosho Optima 4WD Impact-Resistant Bumper

Strong impact-resistant resin bumper. Includes mini bumper suitable for racing and large bumper for sports driving.


Specifications

  • Length: 395mm (15.5")
  • Width: 240mm (9.44")
  • Height: 120mm (4.72")
  • Ground Clearance: 36mm (1.41")
  • Wheelbase: 260mm (10.2")
  • Tread (F/R): 204mm / 204mm (8.03 / 8.03")
  • Tyre(F/R): 86 x 40mm / 86 x 40mm (3.38 x 1.57 / 3.38 x 1.57")
  • Gear Ratio: 9.24:1
  • Weight: 1,600g (3.52lbs) approx.
  • Motor: 540 class size
  • Battery: Ni-MH / Li-PO; Li-PO: Standard Size / short size
  • R/C System: 2 channel, 1-servo, ESC



Included items



Decals
L-shape hex wrench
Cross wrench
Shock wrench
Shock oil
Grease
Thread-lock glue
Clear Lexan body



Required items (not included)



2 Channel R/C System (1 x servo, 1 x ESC)
540 Motor (20T – 27T recommended)
Battery for motor (7.2V NiMH or Li-Po battery)
Charger for motor battery (stable 12V power supply required if using DC)
Paint for body
Batteries for transmitter

Specifications

Car
Assembly Type: Kit
Max LiPo Power: 2S (7.4v)
Size (Scale): 1/10
Skill Level: Intermediate
Chassis Type: Buggy
On/Off Road: Off Road
Drivetrain: 4WD
Factory specs
Max LiPo power:
Battery connector:
Front shock oil:
SKU KYO-30617
Barcode # 4548565466351
Brand KYOSHO
SCALE 1:10
