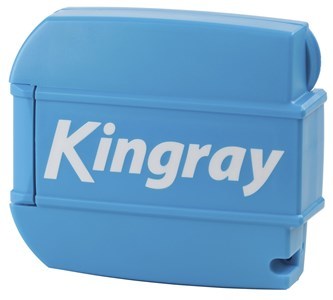

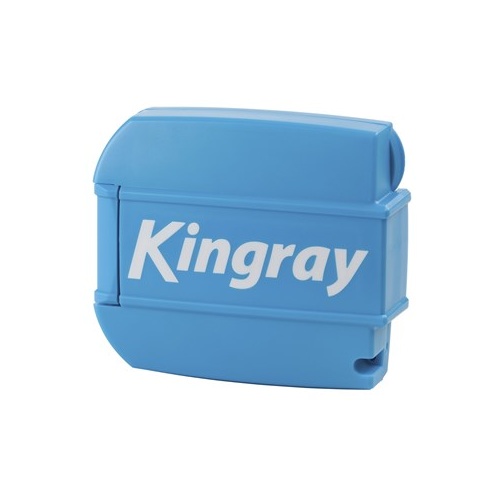

Australian design and high quality SMD construction leads to exception performance from this 4-output masthead amplifier from Kingray. Accepts a single mixed antenna input, and provides four amplified outputs for you to run to each wall point in your home. All connections are F-type to ensure best signal quality, and the circuit board is housed in a metal case to shield against noise. Includes power supply.

> Wide input range to suit all analogue and digital TV signals
> 4 individual amplified outputs
> Suitable for combined VHF/UHF antenna input
> Replacement power supply LT-3256

Specifications:
• Frequency range: 44 - 860 MHz
• Max gain: VHF 12 dB, UHF 16 dB
• Gain control: 11 - 14 dB tilt
• Noise figure: Max output: 100 dBuV DIN45004B / -60dB IMR
• Supply voltage: 14V DC 70mA
SKU AM-LT3253
Barcode # 9319236978375
