Description

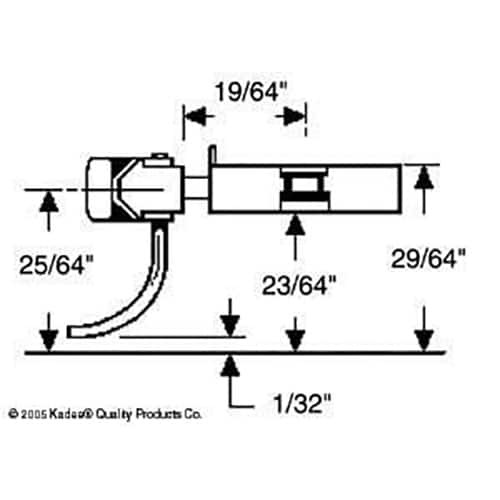

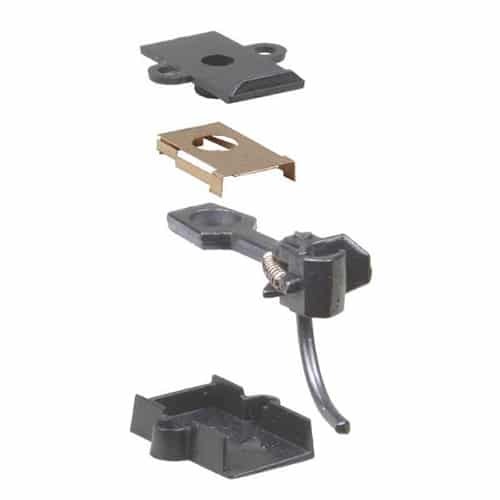

The NO.5® Kadee® Magne-Matic® Coupler features a Metal Coupler, #634 Centering Spring, insulated #232 Draft Gear Box and Lid with side and center screw holes for mounting. The NO.5® Coupler may be mounted with supplied #232 draft gear box or with manufactures cast-on coupler pockets. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gear box to avoid the possible electrical crossover or shorting that may cause damage. Use the provided insulated draft gear box or use the very strong plastic isolated #28 Coupler which has the same mounting dimensions as the NO.5® Coupler.
Two pair per package



Standard Coupler Instructions



Note: The #148 WHISKER® Coupler will work anywhere a NO.5® Coupler will work. The #148 coupler is the WHISKER®Coupler equivalent to the NO.5® Coupler.

SKU 11-0005
Barcode # 765484000051
Brand KADEE
Shipping Weight 0.0500kg
SCALE H0
