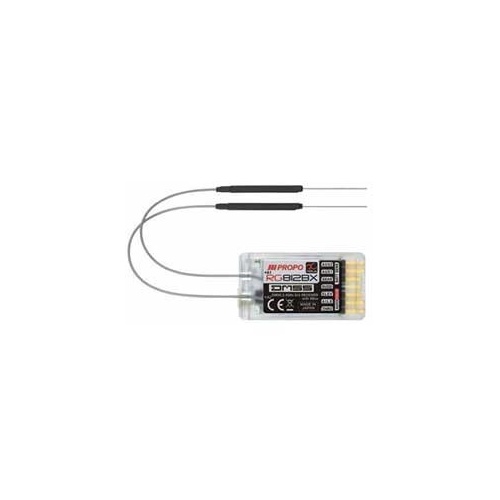

Based on the proven RG712BX Receiver, JR’s new RG812BX not only features an additional 8th channel, but a unique “hybrid port” that allows the Aux 3 servo ports to be used either as conventional PWM servo ports, or as a direct XBus serial connection. Featuring path diversity antennas for outstanding signal reception, and increased telemetry signal syncing. With path diversity antennas, a remote antenna is not required, but an RA02TL remote may be added to the RG812BX for additional antenna diversity, further enhancing signal reception. The RG812BX allows you to simplify your antenna setup, have the security of full range operation, while still enjoying the benefits of built-in telemetry and XBus functionality.

The RG812BX utilizes JR’s robust DMSS modulation system that combines attribute from both DSSS and FHSS modulation into a wide-band transmission system with high-speed response and high resistance to RF noise. Also unique to DMSS is JR’s Intelligent Output System (IOS), which automatically selects control signals that need to be transmitted simultaneously and delivers the data as one complete signal frame. IOS ensures there is no time delay when commanding servos used for critical functions such as a CCPM swashplate on a helicopter or with an aircraft with multiple servos ganged on a single control surface. This gives a stronger connection in flight and can reduce wear on components, keeping your model flying better, longer.

Not only does this receiver listen, but it talks back as well. DMSS is a bi-directional communication system that delivers real-time telemetry information. Receiver voltage telemetry is standard with every DMSS receiver, and add-on sensors are available to monitor nearly every metric vital to the operation of your mode.

  • Path diversity antennas provide full-range signal and telemetry data without a remote
  • antenna
  • 5-channel standard PWM output and single shared XBus or PWM output can be used
  • parallel with one another for additional capability.
  • EZ BIND capable- no bind plugs necessary!
  • Low power consumption
  • Option to add RA02TL remote for additional path diversity in more complex installations.
  • Receiver Voltage Telemetry: Standard
Type
Full-range
Channel Count
8
Modulation
DMSS
Band
2.4Ghz
Length
1.87 in (47.5mm)
Width
1.01 in (25.5mm)
Height
0.57 in (14.5mm)
Weight
0.53oz (15g)
Input Voltage
4.0–8.5V
Case Type
hard plastic
Antenna Length
150mm
SKU JRPRG812BX
Barcode # 2000000002033
Brand JR
Shipping Weight 0.2000kg
