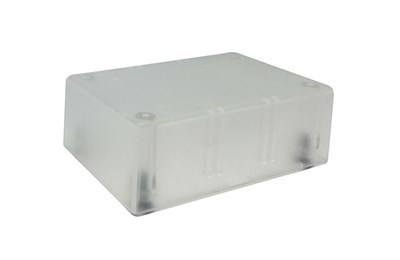

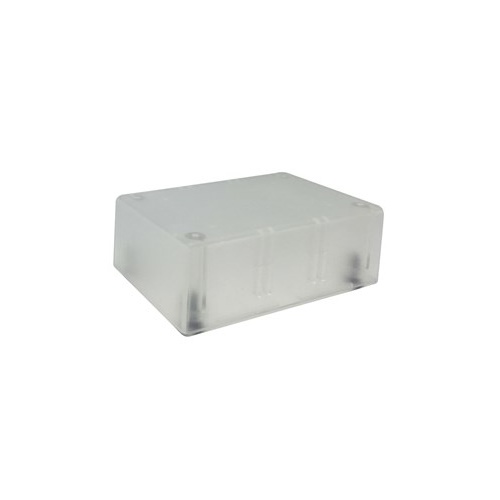

Manufactured from ABS plastic, these jiffy boxes not only look great, they have been designed to incorporate everything our customers wanted in a constructor's box. Sizes are compliant with industry standards externally and PCB fitting internally.

• Impervious, dimple-free finish provides good adhesion for screen printing
• Lids feature a 5mm grid of 'centre punch' type points on the underside for quick, easy and accurate drilling
• Lids also feature a 10mm grid of scribed lines providing an easy and precise guide for cutting or filing cut-outs
• PCB guides in the sides of the box have snap-in locators. Eliminates the need for stand-off hardware when mounting boards horizontally

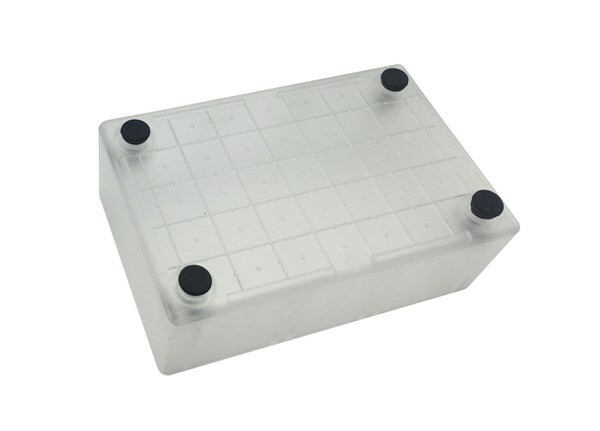

• Box also has a grid of 'centre punch' type points on the base of the inside

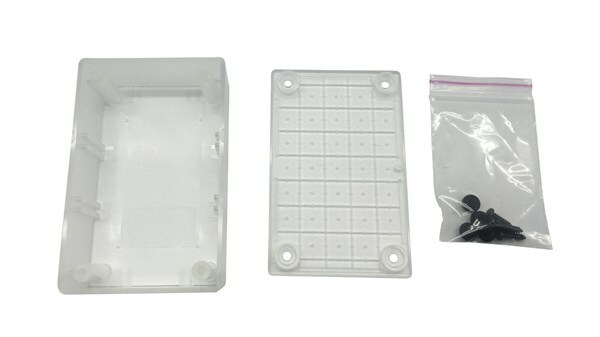

• Supplied with lid fixing screws and safety concealment plugs
Specifications
External (mm) 83 x 54 x 31
To fit PCB (mm) Vertical 50 x 27
To fit PCB (mm) Horizontal 62 x 49

SKU AM-HB6005
Model # HB6005
Barcode # 9319236852637
Shipping Weight 0.2000kg
