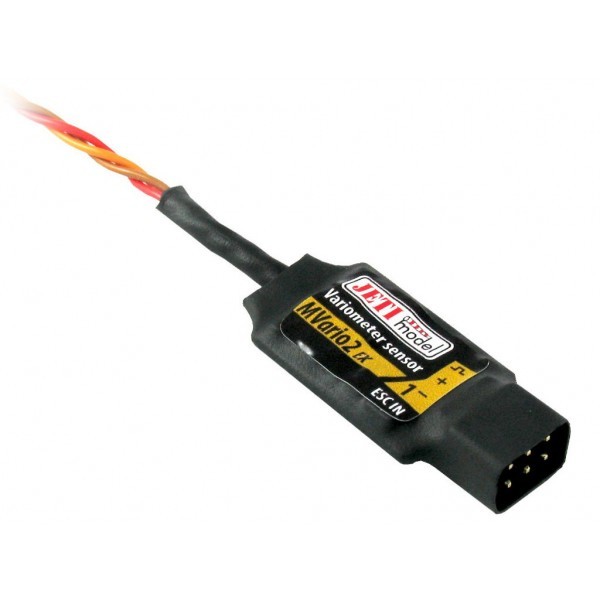

MVario2 EX is a system that measures atmospheric pressure and using the obtained data it calculates the altitude above sea level, airspeed, and the rate of climb as well as the rate of descent. Changes in climb and descent rates are signaled as well. The sensor also alerts you if any alarm setting is exceeded. The sensor data can also be transmitted via the Duplex system to the user.

The Duplex system takes advantage of the 2.4GHz band for communication. This system not only transmits control data to the model but also sends data from the model back to the transmitter. The telemetry data collected during operation is shown as actual, measured values in real time on either LCD screen of a connected JETIBOX or on the DC/DS JETI model transmitters.

  • Measurement of altitude, pressure, and temperature
  • Very accurate and fast indication of climb and descent
  • Possible sound alarm signaling using a JETI Tx module (EU only) or JETIBOX profi
  • Possibility to be used as an Expander and to connect other sensors
  • Adjustable compensation of energy (TEK) via MSPEED EX sensor
  • Possibility to be used as an altitude switch in FAI F5J or ALES competition categories
  • The device is compatible with EX Bus protocol, i.e. it is possible to be configured comfortably via a special menu in DC/DS JETI model transmitters
  • Firmware updates
Weight [g]
5
Dimensions [mm]
35 x 16 x 7
Operational temperature [°C]
-10 ... 85
Supply Voltage [V]
3.5 ... 8,4
Average Current [mA]
15
Resolution of measured height
0.1m
Typical noise ratio in height changes measurement
±0.05m/s
Measurement range
450÷1100hPa
SKU JEXMV2
Brand Jeti Model
