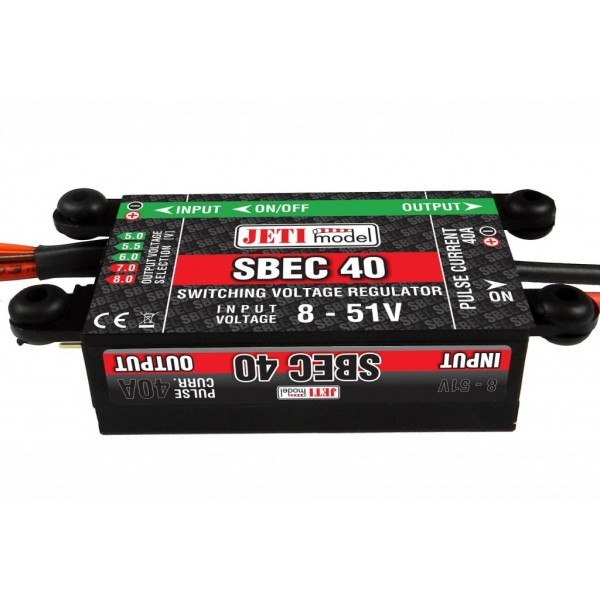

The switching voltage regulator SBEC is supposed to function as a current supply for receivers and servos. It enables to use a wide range of input voltages from 3S up to 12S Li-XX cells. Setup of the output voltage between 5 and 8V is accomplished by a shorting plug jumper. This implies that the SBEC is also prepared for use with new „higher“ voltage servos. The SBEC is suitable for medium and larger model due to its maximum current of 40A.

The output voltage is adjusted with the aid of a shorting plug (jumper) in steps of  5.0V, 5.5V, 6.0V, 7.0V and 8.0V. An important condition of keeping correct output voltage in connection with the jumper position is a sufficiently high supply voltage. The supply voltage of the battery must, by all means, be higher than the required output voltage. We recommend a minimum difference of at least 2V above the output voltage. Otherwise, the output voltage would decrease under load conditions. The switched-on condition of the regulator and the information about the presence of voltage at its output are signalled by a shining green LED.

Weight [g]
100
Dimensions [mm]
80 x 36 x 25
Sustained current [A]
18 (3S LiXXX)
Telemetry
No
Operational temperature [°C]
-20 ... 85
Recommended input voltage [V]
8 ... 51
Output voltage [V]
5.0 / 5.5 / 6.0 / 7.0 / 8.0
Idle current [µA]
85 (10S LiXXX)
Number of battery inputs
1
Input voltage max. [V]
51
Peak current (max 5s) [A]
40
SKU J-SBEC-40
