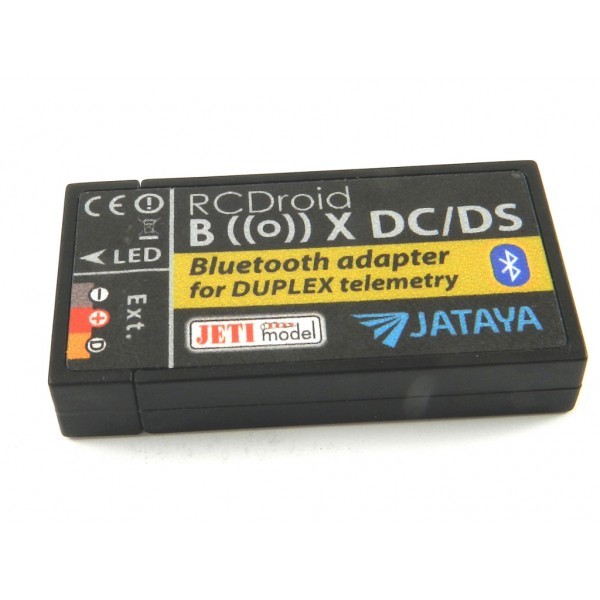

RCDroidBox allows real-time monitoring and recording of telemetry data transferred using JETI Duplex or Duplex EX protocol. The system consists of both hardware and a software part. The hardware is the actual RCDroidBox Bluetooth adapter and the software is an application running on a device with the Android operating system, such as cell phone or tablet.

The application is available free of charge on Google Play - JATAYA - RCDroidBox.

Functions

  • Monitoring the power supply
    In the main telemetry display, you have a possibility to display not only the values of the connected sensors but also a voltage of the RCDroidBox batteryWith this variable, it is possible to work in the same way as with other values, and therefore you can assign a report alarm or display a value in the text box.
  • LiPo batteries protection
    If powering the RCDroidBox from LiPo batteries, you do not have to worry about their damage.The RCDroidBox displays a warning when the voltage is less than 3.4V per cell. In case the voltage drops below 3.2V, the cell is automatically switched off.
  • Adjustable battery protection
    You can also choose your own level of voltage at which the device will display a warning and personal level for switching off.
  • Power saving mode
    In case the Bluetooth or the telemetry input (Ext.) are not active for more than 20 minutes, the RCDroidBox goes into the sleep mode and minimizes its consumption.
Weight [g]
15
Dimensions [mm]
38 x 20 x 7
Operational temperature [°C]
-15 ... 50
Supply Voltage [V]
3.5 ... 15
Average Current [mA]
20
SKU JEX-MBT-DC-DS
Brand Jeti Model
