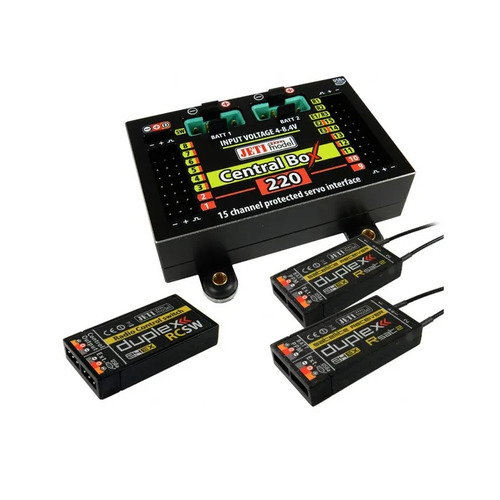

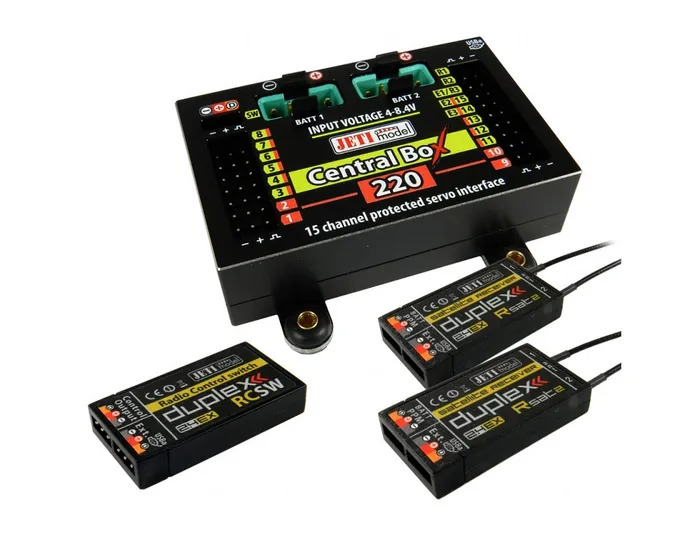

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety.



  • Central Box 220 has overload protection on each channel
  • Channels 1, 2, 9 and 10 have protection for high-torque servo up to 60 Kg.cm.
  • Channels 3 - 8 and 11 - 15 have protection for standard servo up to 30 Kg.cm.
  • Support of DITEX telemetry servos
  • Possibility to connect up to 3 receivers with serial interface
  • Built-in Expander function for up to 3 sensors
  • Input for a magnetic switch or RC switch
  • 2x MPX battery input connectors
  • 100Hz mode of servo outputs (10ms period)
  • Supports EX telemetry (voltage, current, capacity, temperature measurement, etc)
SKU J-CB-220-RS-RCSW
Barcode # j-cb-220-rs-rcsw
Brand Jeti Model
Shipping Weight 0.0500kg
