The MFlow is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank. There are two versions of the sensor available. The MFlow-Turbine is a variant designed for the models powered by a jet engine, the MFlow-Gasoline is a variant for the models powered by glow or gasoline motors.

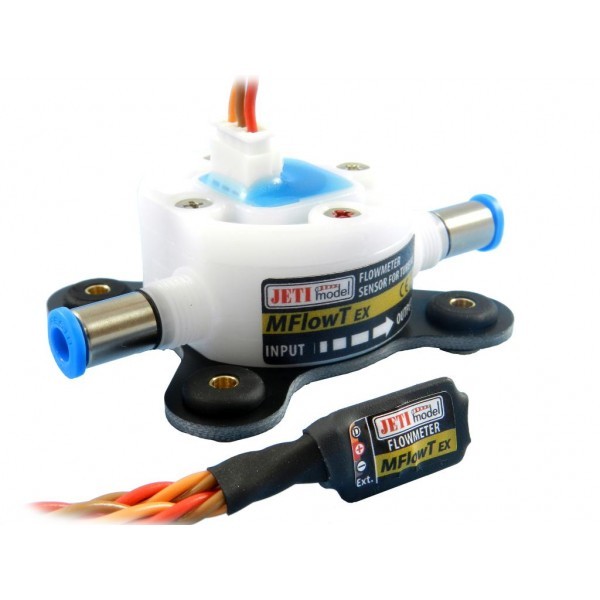

MFlow consists of the flow sensor and the base. The sensor is connected to the base via a cable with a lock connector. The other cable labeled as „Ext“ is used for the DUPLEX system or the JETIBOX. The flow sensor is fitted with these endings according to the type:

MFlow T: 2x FESTO for tubes with the external diameter of 4mm

  • The sensor is compatible with Duplex EX system
  • EX telemetry values: actual flow and the amount of the fuel in the tank
  • User adjustable parameters, such as tank capacity, depleted fuel alarm, etc
  • Firmware updates
Weight [g]
40
Dimensions [mm]
77 x 41 x 30
Operational temperature [°C]
-20 ... 85
Supply Voltage [V]
5 ..
Measurement range
20-800 ml/min
Measurement accuracy
±2%
Tubing connection
2x Festo Ø4mm
SKU JEXMFT
Brand Jeti Model
