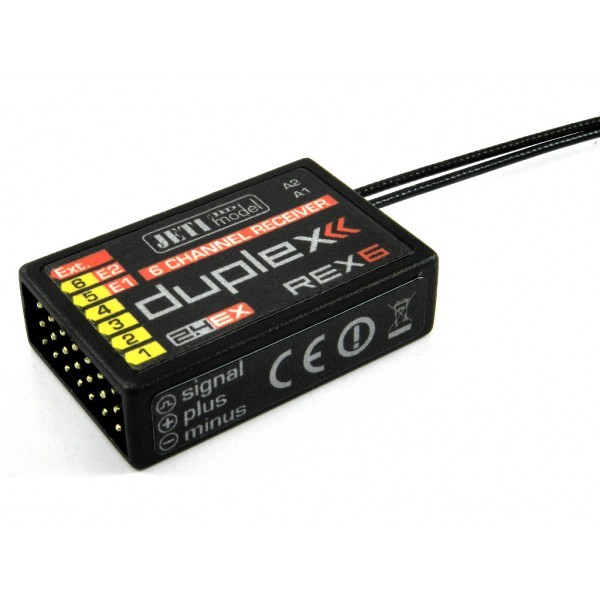

JETI Duplex receivers are designated for use with the DC/DS transmitters or the JETI transmitter modules in the 2.4 GHz frequency band.

The receivers support online updates so that everyone is able to install the latest software versions. From the very beginning bidirectional transmission has been a distinctive feature of the Duplex system, this not only handles telemetry data, but it also helps to ensure secure primarily transmission safety between the transmitter and receiver.

The Duplex EX telemetry system uses an open protocol. This gives the advantage of compatibility with a large number of telemetry sensors from both JETI model and third party producers. For the display of telemetry data you can use purposely designed equipment like the JETIBOX profi and DC/DS transmitters or you can display the data on PCs.

  • PPM input
  • PPM output
  • Integrated expander for EX & EX Bus devices
  • UDI digital output
  • Lightweight, compact size
  • Dual receiver antennas
Weight [g]
11
Dimensions [mm]
38 x 25 x 11
Number of channels
6
Telemetry
Yes
Operational temperature [°C]
-10 ... 85
Compatible protocols
DUPLEX 2.4GHz EX, EX Bus
Antenna Length [mm]
2 x 100
Supply Voltage [V]
3,5 - 8,4
Average Current [mA]
75
Satellite receiver support
Yes
Output Power [dBm]
15
Receiver Sensitivity [dBm]
-106
SKU JDEX-RR6
Barcode # jdex-rr6
Brand Jeti Model
Shipping Weight 0.0500kg
