- Made with ABS Material
- Moulded in dark grey
- Operating temperature: -20 to +80C
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.

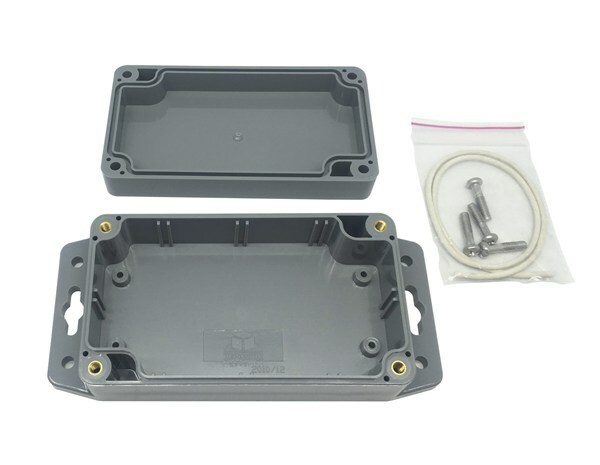

- The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
- Some sizes also available with external flange to allow mounting after the box has been sealed
- Designed to IP65 of IEC529 and NEMS 4 (dust and hose proof)
- Internal guide slots for mounting PCB assemblies vertically (Not on HB-6120 or HB-6134)

• Box: 115(W) x 65(D) x 40(H)mm
• Base: 145(W) x 65(D)mm

Dark Grey:
HB6120 64(W) x 58(D) x 35(H)mm
HB6122 115(W) x 65(D) x 40(H)mm
HB6124 115(W) x 65(D) x 55(H)mm
HB6126 115(W) x 90(D) x 55(H)mm
HB6128 171(W) x 121(D) x 55(H)mm
HB6129 171(W) x 121(D) x 80(H)mm
HB6130 222(W) x 146(D) x 55(H)mm
HB6132 222(W) x 146(D) x 75(H)mm
HB6134 240(W) x 160(D) x 90(H)mm

Dark Grey with Mounting Flange:
HB6121 Box: 64(W) x 58(D) x 35(H)mm
Base: 94(W) x 58(D)mm
HB6138 Box: 115(W) x 65(D) x 55(H)mm
Base: 145(W) x 65(D)mm
HB6127 Box: 115(W) x 90(D) x 55(H)mm
Base: 145(W) x 90(D)mm
HB6125 Box: 171(W) x 121(D) x 55(H)mm
Base: 201(W) x 121(D)mm
SKU AM-HB6123
Model # HB6123
