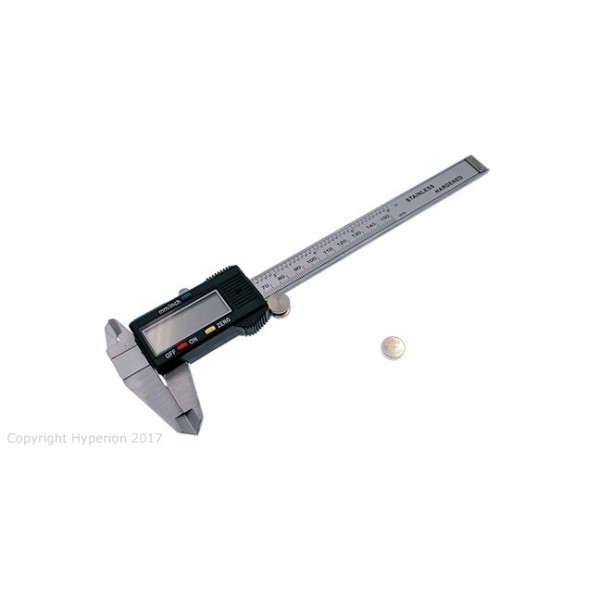

The Hyperion Digital Caliper is a small and handy measuring tool. Specially designed for use in hobby and small workshops. The digital LCD screen makes it convenient to read the measurements in millimetre or inches. Now know the dimensions of your parts before placing the order. This measuring instrument can measure ID, OD, Depth and Step of any parts and show instantly on the LCD in the choice of your unit. Also, one-touch button makes it convenient to switch between metric and inches. No more calculations or calculators needed!

Measure your motor's diameter, inner diameter, shaft OD, width or depth with this handy tool. Packed in a plastic case for easy storing and includes a 1.5v battery. This tool is a must for your workshop.

  • Four-way measurement capability for multiple applications: outside diameter (OD), inside diameter (ID), depth, and step
  • Digital, single-value readout LCD display in metric units for readability
  • Position memory for retaining measurements
  • Function control buttons on the face, for ease of use: Origin, On/Off, and Zero/ABS (Absolute Scale)
Range
0-150mm, 0-6"
Accuracy
+/- .02mm/.001"
Resolution
.01mm/0.0005"
Repeatability
0.01mm/0.0005"
Max Measuring Speed
1.5m/s, 60inch/s (FAST)
Operating Temp
0~40℃
Storage Temp
-10~60℃
Power
1.5v SR44 Battery
SKU HP-TLCALIPER
