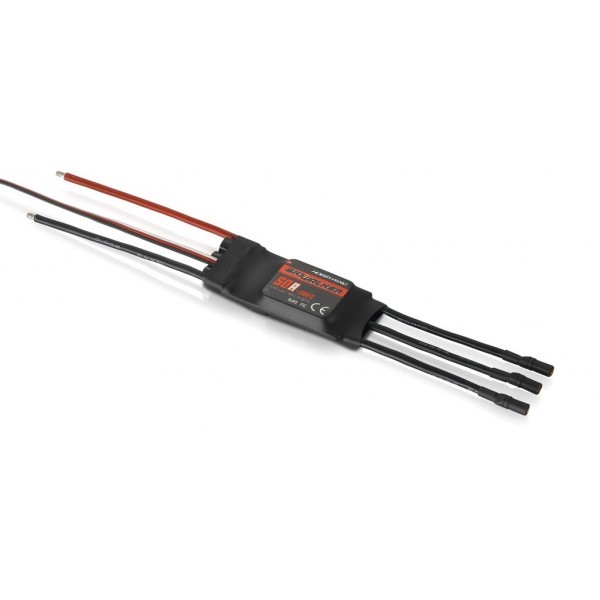

Hobby Wing 50A Skywalker ESC w/5A BEC
  • Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
  • Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
  • User programmable.
  • Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
  • Compatible with Lipo and NiMH battery.
  • Timing can be changed to be suitable for different brushless motors.
  • Full protection: Low voltage cutoff protection / Overheat protection / Throttle signal loss protection.
Output
Continuous 50A, Burst 65A up to 10 seconds.
Input Voltage
2-4S Lipo, 5-12 cells NiMH.
BEC
5A / 5V Switch mode .
Refresh rate of the throttle signal
50Hz to 432Hz.
Max Speed
210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
Size
65mm x 35mm x 14mm.
Weight
41g.
SKU FPHW-BQ8015
Brand Hobbywing
