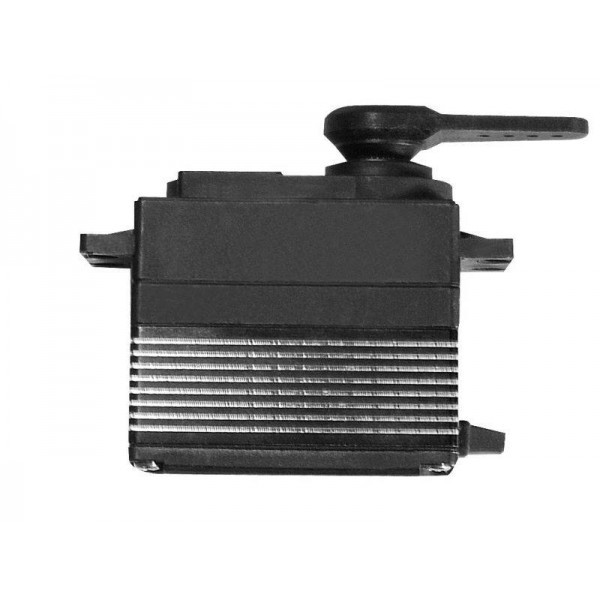

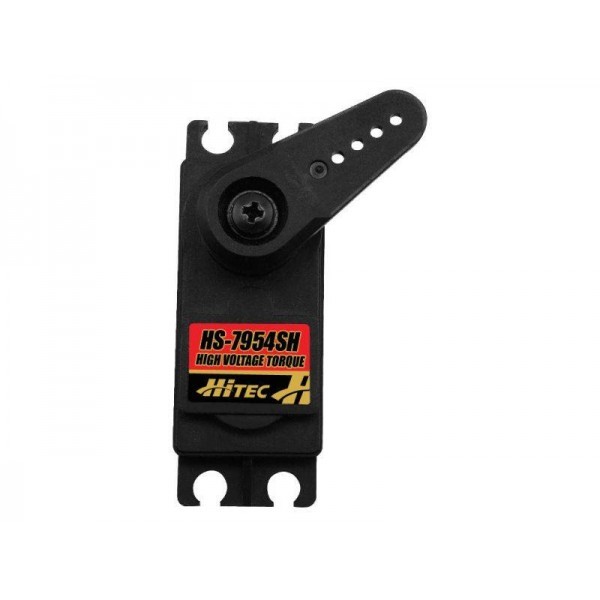

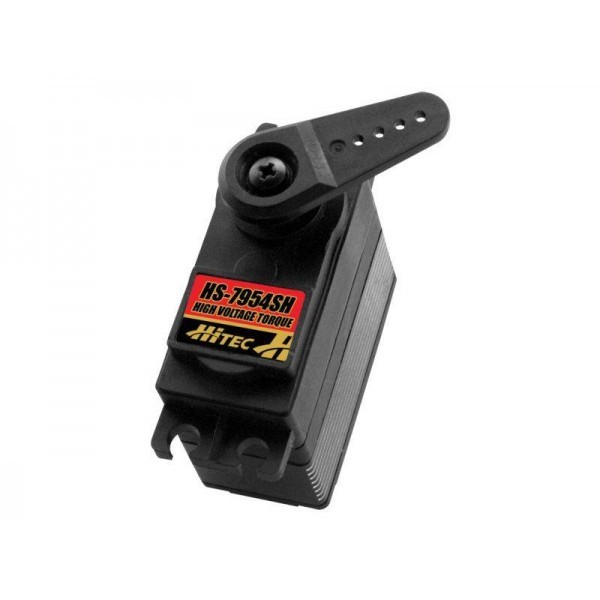

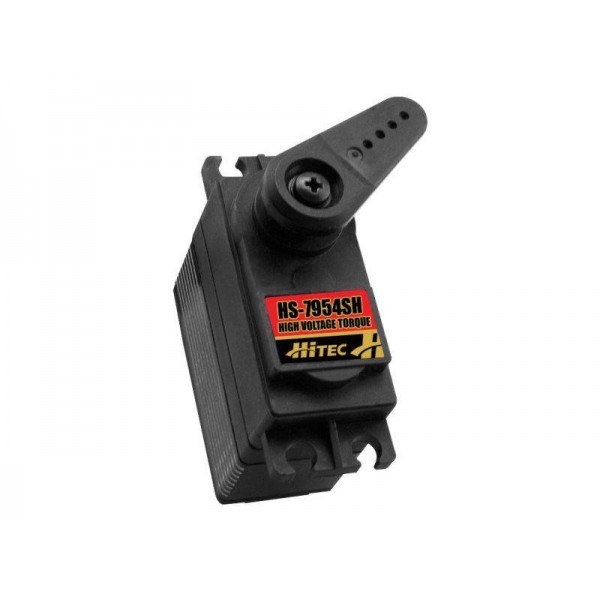

The HS-7954SH could be considered the most economical high voltage, high torque, coreless servo on the market. Based on the ultra popular HS-7955TG, the HS-7954SH has the added benefit of our high voltage coreless motor. With 403 inch ounce of torque at 7.4 volts, the HS-7954SH is fast too with a 0.12 second transit time when operating on a 2 cell LiPo pack. The HS-7954SH harnesses all this power by utilizing a heavy duty case that incorporates an aluminum heat sink, hardened steel gears, and two strong steel gear pins nested in brass axial bushings. Put it all together and you get one tough high voltage servo at a price that can't be beat.

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Overload Protection
  • Resolution
  • Data Save / Load
  • Program Reset
  • G2 Digital Circuit
  • HV Coreless Motor
  • Dual Ball Bearing Supported Output Shaft
  • Steel Gear Train (MK first gear)
Operating Voltage Range (Volts DC)
6.0V ~ 7.4V
Speed (Second @ 60°)
0.15 ~ 0.12
Maximum Torque Range oz. / in.
333 ~ 403
Maximum Torque Range kg. / cm.
24.0 ~ 29.0
Current Draw at Idle
9 mA
No Load Operating Current Draw
240 mA
Stall Current Draw
3,000 mA
Dead Band Width
1 µs

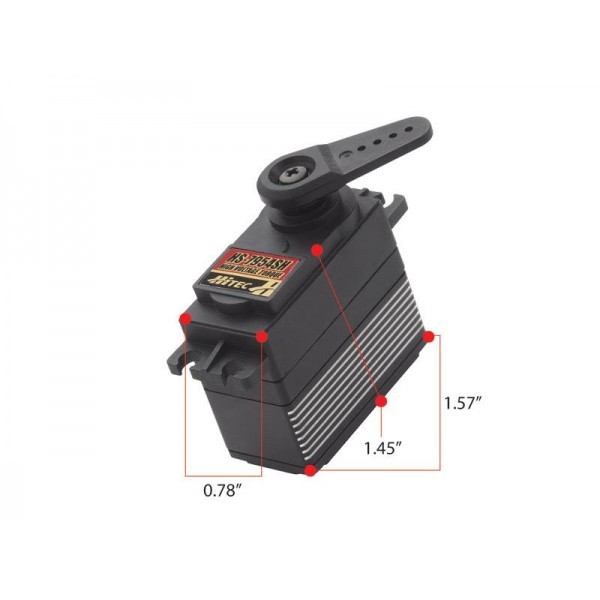

Dimensions (Metric)
40.0 x 20.0 x 37.0
Weight (Gram)
68
Circuit Type
G2 Programable Digital
Motor Type
Coreless Metal Brush
Gear Material
Steel
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
Standard 24
Case Material
Plastic / Aluminum
Dust / Water Resistance
Splash Proof
Connector Gauge (AWG) / Strand Count
22 / 60
SKU HRC37954
Barcode # 669962379540
Brand Hitec RCD
Shipping Weight 1.0000kg
