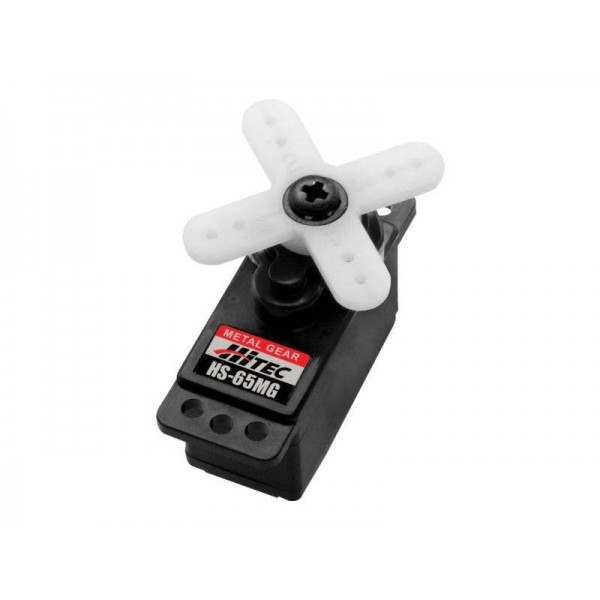

Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.

  • Top Selling Metal Gear Feather Servo
  • High Performance ThreePole Motor
  • Rugged Metal Gear for Added Durability
  • Ball BearingSupported Output Shaft
Operating Voltage Range (Volts DC)
4.8V ~ 6.0V
Speed (Second @ 60°)
0.14 ~ 0.11
Maximum Torque Range oz. / in.
25 ~ 31
Maximum Torque Range kg. / cm.
1.8 ~ 2.2
Current Draw at Idle
8 mAh
No Load Operating Current Draw
220 mAh
Stall Current Draw
1200 mAh
Dead Band Width
5 µs
Dimensions (Metric)
23.6 x 11.6 x 24.0
Weight (Gram)
11.9
Circuit Type
HT7003 Analog SMT
Motor Type
3 Pole Metal Brush Neodymium
Gear Material
Metal
Bearing Type
Top Ball Bearing
Output Shaft (type / Ømm)
Micro 23
Case Material
Plastic
Dust / Water Resistance
N / A
Connector Gauge (AWG) / Strand Count
28 / 20
SKU HRC32065
Barcode # 669962320474
Brand Hitec RCD
Shipping Weight 0.0500kg
