Overview

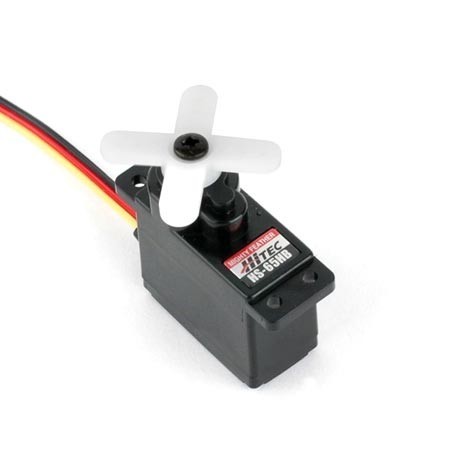

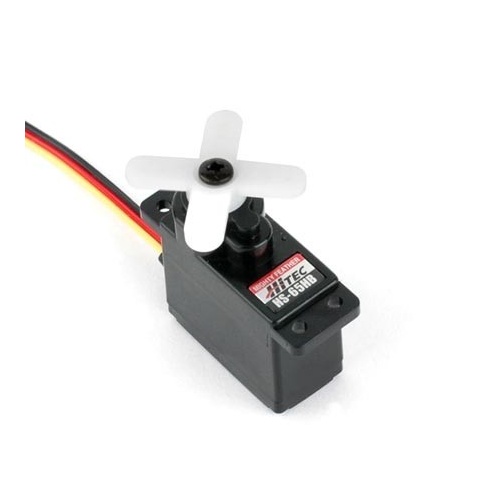

Hitec's HS-65HB Karbonite Gear Micro Mighty Feather Light Servo
Features
  • Powerful but small
  • Perfect for many electric applications
  • Long-lasting Karbonite gears

Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal (HRC32065S) or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 oz-in of torque at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.

- (HTHS-65HB)
Size Category
Minis and Micros
Type
Analog
Application
Park flyers, small aircraft, 1/18 scale cars
Torque
25.0 oz-in (1.8kg-cm) @ 4.8V; 30.6 oz-in (2.2kg-cm) @ 6V
Speed
0.14 sec/60 deg @ 4.8V; 0.11 sec/60 deg @ 6V, at no load
Length
0.93 in (23.6mm)
Width
0.46 in (11.6mm)
Height
0.94 in (24.0mm)
Weight
0.39 oz (11.2g)
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
3 Pole
Connector Type
Universal
Gear Material
Karbonite
Current Draw Idle
7.4mA
Current Draw Stall
950mA @ 4.8V; 1200mA @ 6.0V
Voltage
4.8V to 6.0V
Deadband
5µs
Brand
Hitec
SKU HRC33065S
Barcode # 669962330176
Brand Hitec RCD
Shipping Weight 1.0000kg
