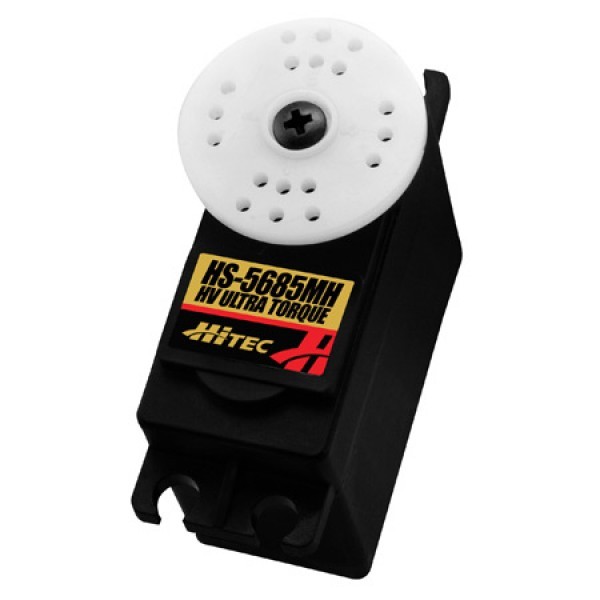

The HS-5685MH High Torque HV Metal Gear servo was designed to run on a 2-cell 7.4V LiPo battery to give you extra torque and speed. Featuring a heavy-duty metal gear train and Hitec's exclusive programmable digital circuit for reliable, durable performance, these servos can be used in a wide range of applications.

Hitec's affordable digital sport servos are the perfect companion for 1/10th to 1/8th scale on- and off-road vehicles, as well as larger sport helicopters and large scale aerobatic aircraft up to 25-percent.

Programmable Features Include:
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point

- (HTHS-5685MH)

  • Programmable Digital Circuit
  • Heavy-Duty Metal Gear Train (MK first gear)
  • 7.4V Optimized Motor
  • Dual Ball Bearing Supported Output Shaft
Type
Digital
Application
1/10 to 1/8 scale vehicles, large sport helis, up to 25% scale aerobatic aircraft
Torque
157 oz-in (11.3kg-cm) @ 6.0V; 179 oz-in (12.9kg-cm) @ 7.4V
Speed
0.20 sec/60° @ 6.0V; 0.17 sec/60° @ 7.4V
Length
1.6 in (40.6mm)
Width
0.8 in (19.8mm)
Height
1.5 in (37.8mm)
Weight
2.1 oz (60g)
Bushing Or Bearing
Bearing
Bearing
Dual
Motor Type
3-pole ferrite
Connector Type
Universal
Gear Type
Metal
Voltage
6.0V - 7.4V
SKU HRC35685S
Barcode # 669962356855
Brand Hitec
Shipping Weight 0.0500kg
