Features
  • Industry's First IP67Rated Waterproof Case
  • * IP = International Protection Code | 6 = Dust Tight | 7 = Immersion up to 1M
  • Strong ThreePole Ferrite Motor
  • Metal Gear Train with MP First Gear
  • Dual Ball BearingSupported Output Shaft
  • 7.4v 2Cell LiPo Capability
  • Programmable Circuitry

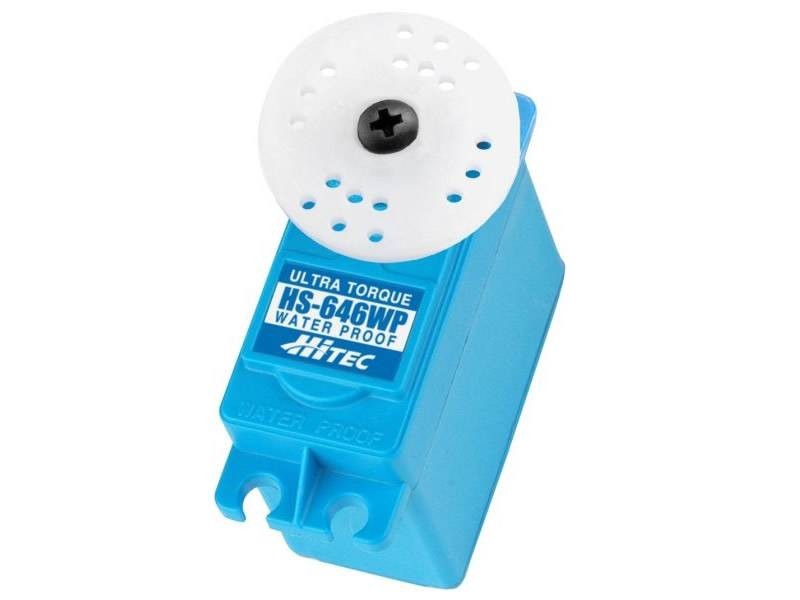

Our waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our analog waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the HS-646WP will dependably keep your mind at ease.
Operating Voltage Range (Volts DC)
6.0V ~ 7.4V
Speed (Second @ 60°)
0.20 ~ 0.17
Maximum Torque Range oz. / in.
133 ~ 161
Maximum Torque Range kg. / cm.
9.6 ~ 11.6
Current Draw at Idle
8 mA
No Load Operating Current Draw
600 mA
Stall Current Draw
2,200 mA
Dead Band Width
4 µs

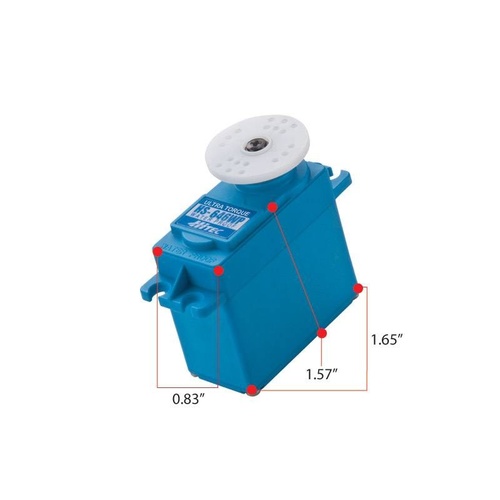

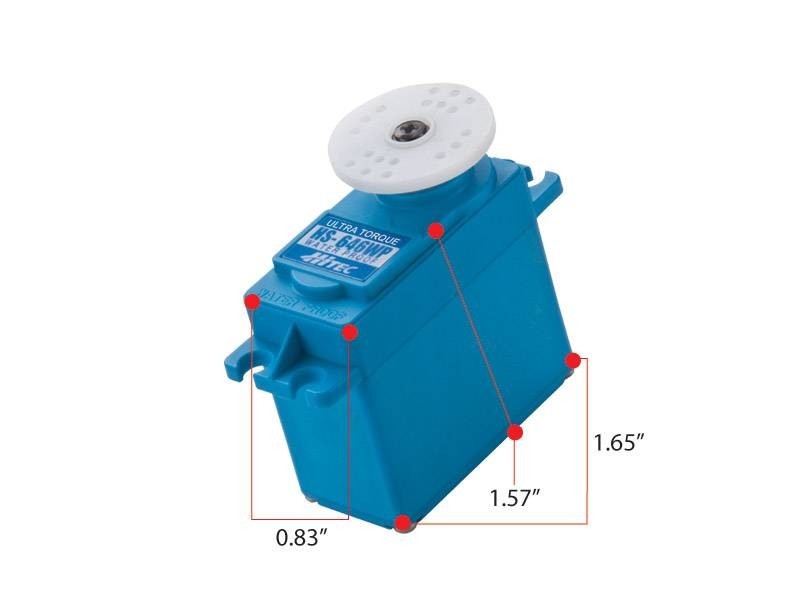

Dimensions (Metric)
41.8 x 21.0 x 40.0
Weight (Gram)
60
Circuit Type
HT7003 WP Analog
Motor Type
3 Pole Metal Brush Ferrite
Gear Material
Metal
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
Standard 24
Case Material
Plastic
Dust / Water Resistance
IP 67
Connector Gauge (AWG) / Strand Count
22 / 60
Brand
Hitec
SKU HRC36646
Barcode # 0669962356466
Brand Hitec RCD
Shipping Weight 0.0500kg
