Product Information

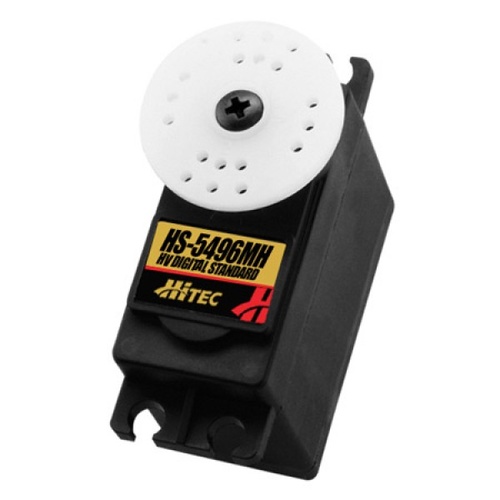

Hitec HS-5496MH Digital Hv Servo. High Torque. Metal Gears. Dual Ball Beari - (HTHS-5496MH)

Specs

Size Category Standard
Type Digital
Application Sport airplanes up to 25%; Sport cars and trucks
Torque 83 oz-in (6.0 kg-cm) @ 6.0V; 100 oz-in (7.2 kg-cm) @ 7.4V
Speed 0.17 sec/60° @ 6.0V; 0.15 sec/60° @ 7.4V
Length 1.57 in (40mm)
Width 0.78 in (20mm)
Height 1.50 in (38mm)
Weight 1.59 oz (52 g)
Bushing Or Bearing Bearing
Bearing Dual
Motor Type 3-pole ferrite
Connector Type Universal
Gear Type Metal
Voltage 6.0V-7.4V
Deadband Programmable
Size Category
Standard
Type
Digital
Application
Sport airplanes up to 25%; Sport cars and trucks
Torque
83 oz-in (6.0 kg-cm) @ 6.0V; 100 oz-in (7.2 kg-cm) @ 7.4V
Speed
0.17 sec/60° @ 6.0V; 0.15 sec/60° @ 7.4V
Length
1.57 in (40mm)
Width
0.78 in (20mm)
Height
1.50 in (38mm)
Weight
1.59 oz (52 g)
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
3-pole ferrite
Connector Type
Universal
Gear Type
Metal
Voltage
6.0V-7.4V
Deadband
Programmable
SKU HRC35496S
Barcode # 669962354967
Brand Hitec RCD
Shipping Weight 0.0500kg
