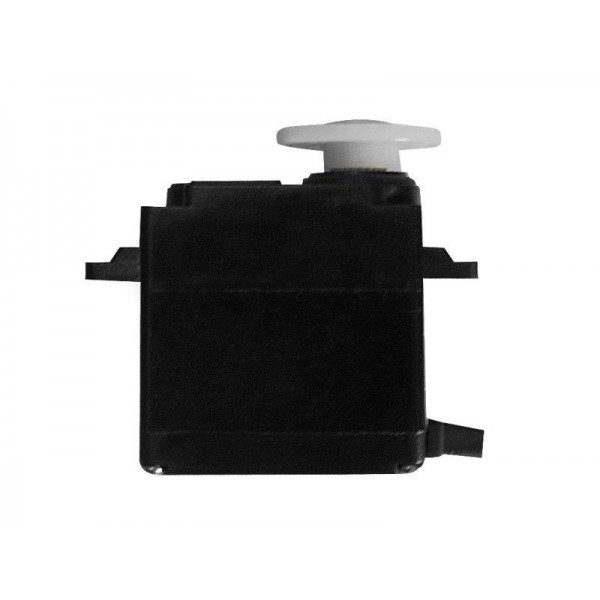

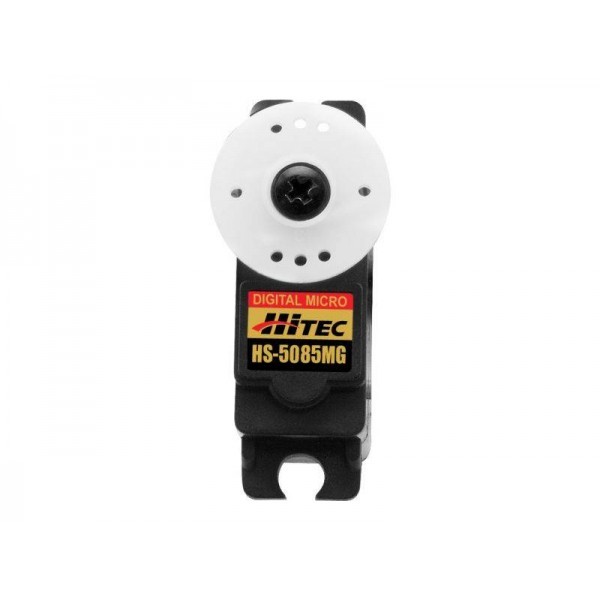

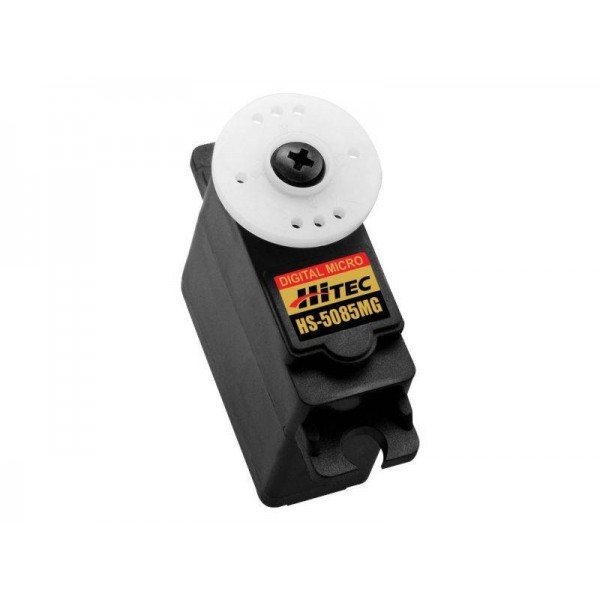

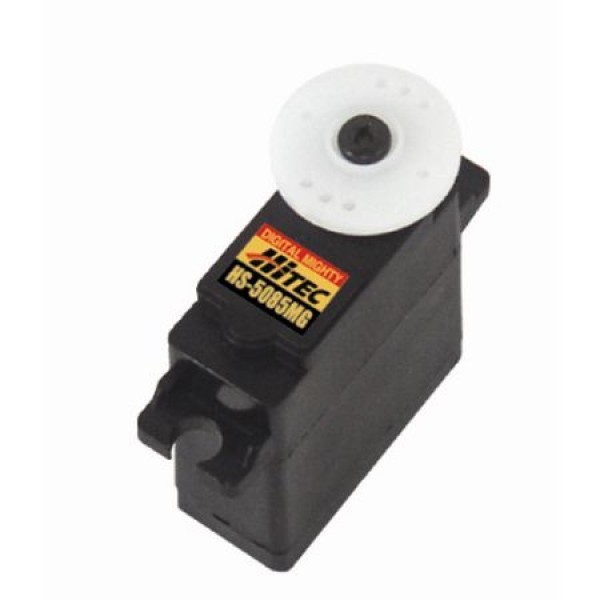

A digital version of one of Hitec’s most popular mini servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacreficing performnce. A popular servo for smaller airplanes, helis, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.


Features

  • Excellent Centering, Resolution, and Durabiilty
  • Great for smaller airplanes, helis, boats, cars, and trucks
  • Standard Servo Performance from a Micro Servo
  • Rugged Metal Gears
  • Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit
  • Stronger Holding Power than the Analog Version
  • Programmable Functions include End Point Adjustments, Direction, Fail Safe, Dead Band, Speed (Slower), Data Save / Load and Program Reset



  • Excellent Centering, Resolution, and Durabiilty
  • Great for smaller airplanes, helis, boats, cars, and trucks
Size Category
Minis and Micros
Type
Digital
Torque
50 oz-in (3.6 kg-cm) @ 4.8V; 60 oz-in (4.3 kg-cm) @ 6.0V
Speed
0.17 sec/60° @ 4.8V; 0.13 sec/60° @ 6.0V
Length
1.14 in (29mm)
Width
0.51 in (13mm)
Height
1.18 in (30mm)
Weight
0.77 oz (22g)
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
3 pole ferrite
Gear Type
Metal
Voltage
4.8V-6.0V
SKU HRC35085S
Barcode # 669962350853
Brand Hitec
Shipping Weight 0.0500kg
