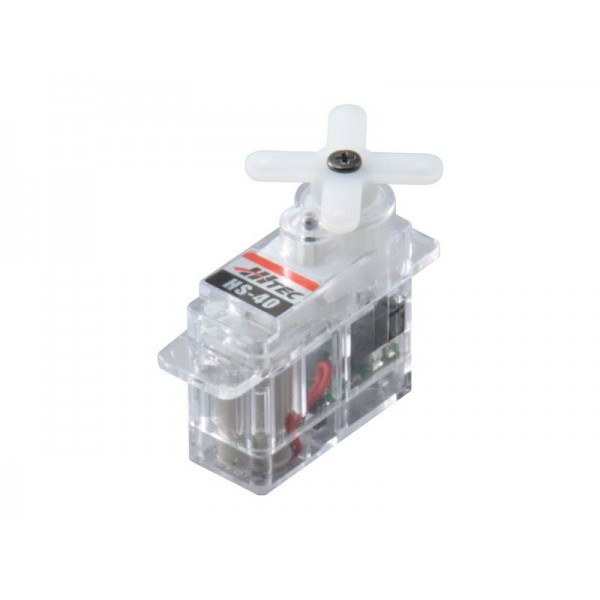

Our research department and engineers work tirelessly at developing economical servo technology that outperforms the competition and the new HS-40 nano analog servo delivers just that. With a three-pole cored motor and resilient nylon gears, this affordable servo is a dream come true for micro aircraft, sailplane and helicopter pilots. Slightly larger than the popular HS-35HD with an operating range of 4.8 to 6.0 volts, the HS-40 is a solid performer that is easy on your wallet!

Features

  • Nylon Gears
  • ThreePole Motor
  • 4.8 & 6.0V Operation
  • Economically Priced
  • Nylon Gears
  • ThreePole Motor
  • 4.8 & 6.0V Operation
  • Economically Priced
Operating Voltage Range (Volts DC)
4.8V ~ 6.0V
Speed (Second @ 60°)
0.12 ~ 0.10
Maximum Torque Range oz. / in.
8.4 ~ 10.5
Maximum Torque Range kg. / cm.
0.6 ~ 0.75
Current Draw at Idle
8 mA
No Load Operating Current Draw
60 mA
Stall Current Draw
460 mA
Dead Band Width
5 µs
Dimensions (Metric)
20.0 x 8.6 x 17.0
Weight (Gram)
4.8
Circuit Type
HT7003 Analog SMT
Motor Type
Cored Metal Brush
Gear Material
Nylon
Bearing Type
None
Output Shaft (type / Ømm)
Feather 15 / 8
Case Material
Plastic
Dust / Water Resistance
N / A
Connector Gauge (AWG) / Strand Count
28 / 20
Connector Gauge (AWG) / Strand Count
28 / 20
SKU HRC31040
Barcode # 669962310406
Brand Hitec RCD
Shipping Weight 0.0500kg
