Overview

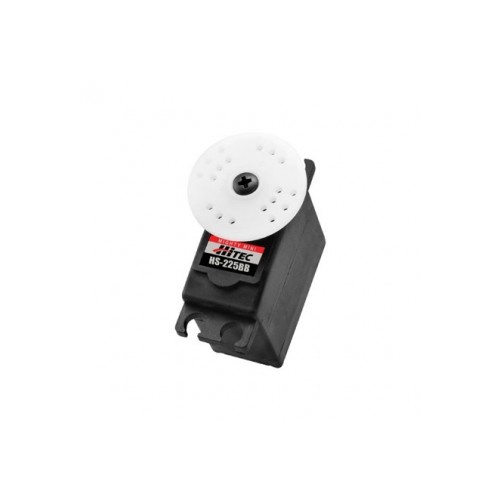

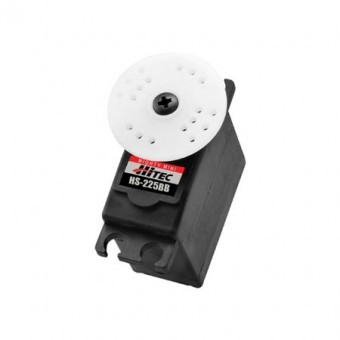

Hitec's HS-225BB Mighty Mini BB Servo
Features
  • Top Ball Bearing
  • SMT Technology
  • Ideal for applications that call for a small, lightweight, high speed, high torque servo

The analog HS-225 series represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225BB high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.

- (HTHS-225BB)
Size Category
Minis and Micros
Type
Analog
Application
Aircraft up to 10 lbs, steering for 1/12th, 1/10th on-road cars, fast electric boats
Torque
54.15 oz-in (3.9kg-cm) @ 4.8V; 66.65 oz-in (4.8kg-cm) @ 6V
Speed
0.14 sec/60 deg @ 4.8V; 0.11 sec/60 deg @ 6V, at no load
Length
1.27 in (32.4mm)
Width
0.66 in (16.8mm)
Height
1.22 in (31.0mm)
Weight
0.95 oz (27.0g)
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
3 Pole
Connector Type
Universal
Gear Type
Nylon
Current Draw Idle
8mA
Voltage
4.8V to 6.0V
Deadband
8µs
SKU HRC31225S
Barcode # 669962310307
Brand Hitec RCD
Shipping Weight 0.0500kg
