Himax Brushless motors are manufactured to high standards
for the discerning modeler. Designed for lightweight, high efficiency,
high torque, and durability Himax Outrunner motors are sure to make
today's radio controlled models perform. Please read the entire
operating manual to ensure correct functionality and best performance.
The HC5030-390 motor is made for medium size models
weighing 6.5-8 Lb for 3D flight, up to 13Lb oz for aerobatic flight
and up to 20 for leisurely flight.

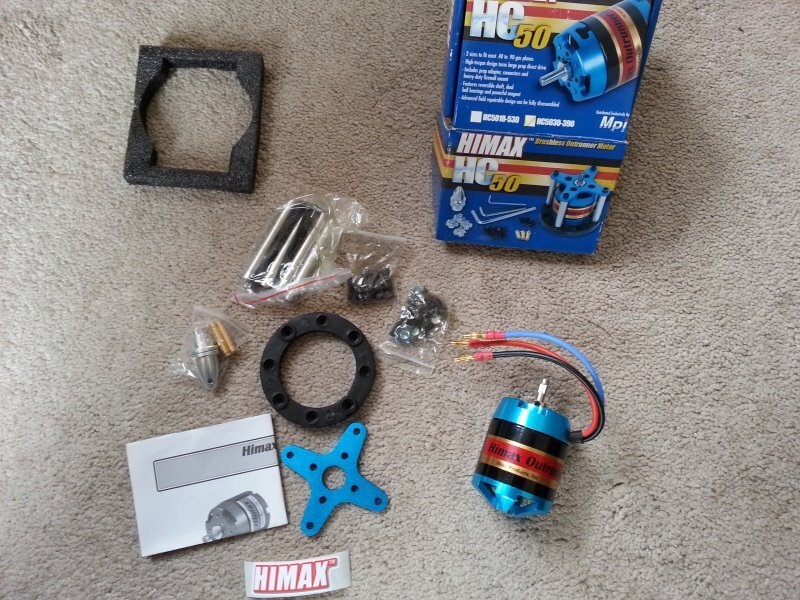

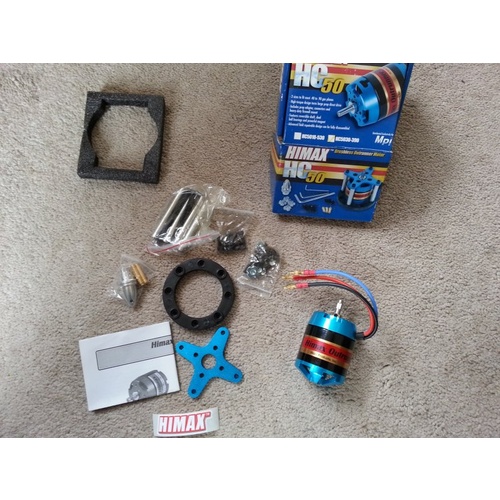

Accessories (included):
1 - Prop Adapter
3 - Female 4mm connector
4 - Motor Mounting Screws
1 - Motor Mount Kit
4 - Hex Keys
Features:
High Efficiency - High Power - High Torque - Lightweight -
Replacement for .40-60 size engines
Specifications:
Weight: 395g, (13.9oz), Motor only
Max Power: 1500W, (This is dependent on several factors)
Max RPM: 12,000 RPM
Diameter: 49.8mm, (1.96)
Length: mm, 65mm(2.09)
Shaft Diameter: 6.0mm (.2362)
Mount Screw Thread: 8-32, 8mm(.313)max depth on 30mm circle
Maximum Case Temperature: 65oC, (149oF)
Electrical Specifications:
HC5018-530 Kv = 530, Rm = .031, Io = 1.8@10V
Efficient Operating Current = 30-50A, 65A Max 15 seconds
Recommended Accesories:
80 Amp Brushless Speed Control
6-9S Lithium Polymer or 16 to 30 Cell NiCd or NiMH Battery, capable
of 50-65 Amps

SKU HC5030-390
Barcode # 843516008920
Brand MPI
Shipping Weight 3.0000kg
