Refer: Silicon Chip Magazine November and December 2012 Use this kit to replace a failed ignition module or to upgrade a mechanical ignition system when restoring a vehicle. Suits vehicles with points, hall effect/lumenition, reluctor and optical sensors (Crane and Piranha) pickup, and virtually any ignition system that uses a single coil, even those controlled by an engine management computer.

Other features include:
• Trigger invert option
• Adjustable dwell time
• Option for output or follow input
• Tachometer output
• Adjustable debounce period
• Dwell compensation for battery voltage
• Simplified design using ignition IGBT to switch the coil
• Coil switch-off with no trigger signal.

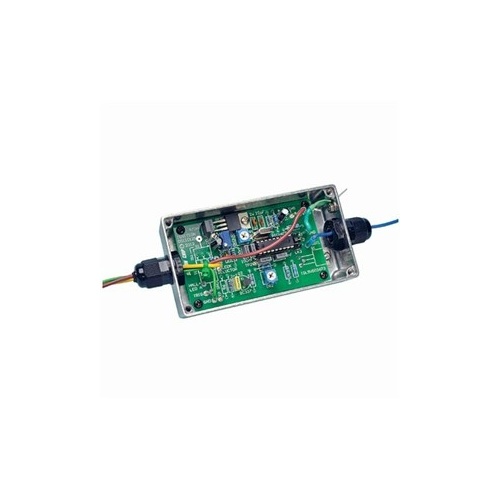

A spark self-test feature allows the dwell to be easily adjusted to suit the coil in use. Kit supplied with silk-screened PCB, diecast enclosure (111 x 60 x 30mm), pre-programmed PIC and PCB mount components for all four trigger/pickup options.

Requires: Miscellaneous mounting hardware specifc to the individual installation.

Note: Hall-effect and optical pick-ups not included.

High Energy Ignition Kit
SKU AM-KC5513
Model # KC5513
Barcode # 9319236983164
