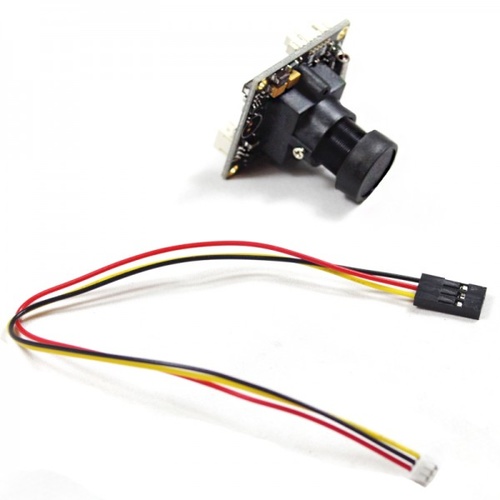

This Sony CCD FPV camera from Helistar is designed for 250-size drones. It features the latest Sony Effio-E chip and supports OSD menu control. You will notice the image capture is crisp and clear, with vivid colours. The package contains two AV cables, with three coloured wires, as detailed below:

  • Red - Positive
  • Black - Negative
  • Yellow - Video Signal
CCD
1/3" Sony 960H Exview HAD CCD II
Lens
Standard 2.8mm lens
Dimensions
32 x 32mm
Weight
13.5g
Total Pixels PAL
1020H × 596V, NTSC:1020H × 508V
Effective Pixels PAL
976H × 582V, NTSC: 976H × 494V
Signal System
PAL/NTSC
Digital Noise Reduction
2DNR
OSD Menu
Supported
Minimum Illumination
0.01 LUX/F1.2
SNR
≥48dB
Video Output
1.0Vp - p/75Ω
Automatic Gain Control
Adjustable 0.25/0.50/0.75/1.00, up to 55dB
White Balance
Optional off/on
Backlight Compensation
HLC
Exposure Mode
Electron exposure
Electronic Shutter
1/50(1/60) - 1/100000 S
Gamma Correction
0.45/1.0
Synchronization Method
Internal synchronization
Working Voltage
DC12V
Working Current
70mA
Working Temperature
-20℃--60℃
Humidity
0-98%
SKU HLICM001
