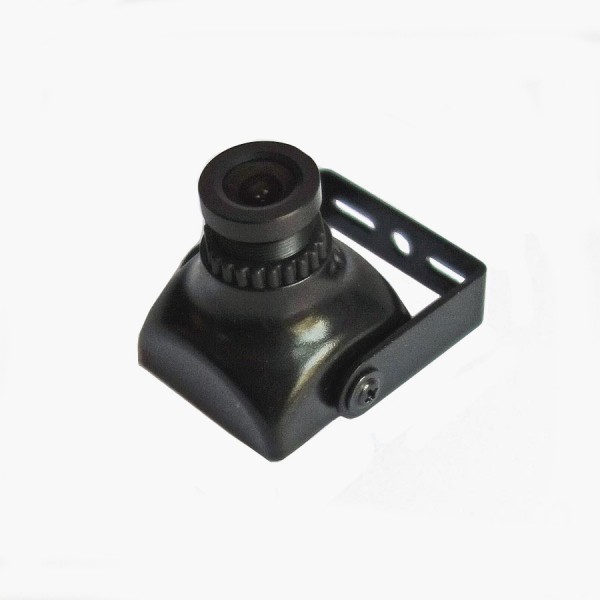

This camera uses a 1/3" Sony Super HAD II CCD, Nextchip 2040 DSP, D-WDR, 2D-DNR, minimum illumination reach 0.01 Lux (black/white) with a powerful OSD.
  • 600TVL high picture quality
  • 1/3" Sony Super HAD II CCD
  • Nextchip 2040 DSP
  • Powerful OSD menu
  • D-WDR (Wide Dynamic Range)
  • 2D-DNR (Digital Noise Reduction)
  • Low Power Consumption(70mA)
  • Mirror function
  • Privacy areas: 8 areas
  • Low illumination: 0.01Lux
  • 2.8mm lens
  • Low power consumption
  • Suitable for FPV
Model
HS1177
CCD
1/3” Sony SUPER HAD II
Pixel
PAL976(H) x 494(V);NTSC768(H)×494(V)
TV System
PAL/NTSC(according to country)
Resolution
650TVL(b/w), 600tvl(color)
Synchronization
internal synchronize
Shutter Speed
(CCD IRIS) PAL1/50~1/100000 sec; NTSC1/60~1/100000 sec
Noise
> 60 (AGC OFF)
Video Out
75ohm, synchronize
Min. Illumination
0.01Lux
Auto Gain
Off/Low/Mid/High
Back Light Compensation (BLC)
Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY)
1~8 private shading area
Motion Detection (MD)
On/ Off (Multi level sensitivity settable)
Auto White Balance
Manual / Auto / Auto track
Mirror
Horizontal optional
Negative
Positive / optional
Color to B&W
Auto
DNR
2
WDR
D-
Day / Night Shift
Auto/ Color/ B&W
Menu (OSD)
English menu
White Dot Repair
Support
Image Adjustment
Support
Camera Title
Support
Power Requirement
DC5V~22V
Working Temperature
-10 C ~ +50 C
Working Humidity
20~80%
Storage Temperature
-40 C ~ +60 C
Storage Humidity
20~95%
Dimensions(mm)
25X25(W*L)
Power Consumption
70mA
SKU HLIHS1177
