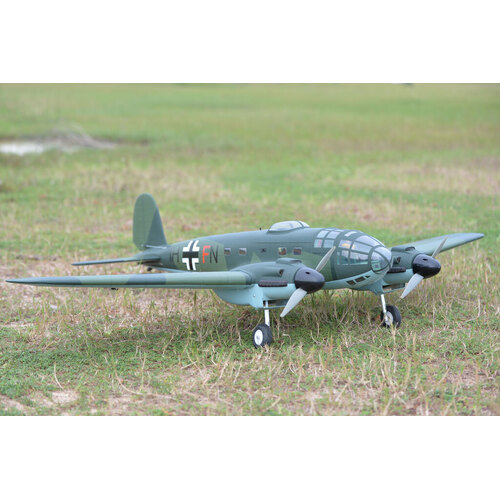

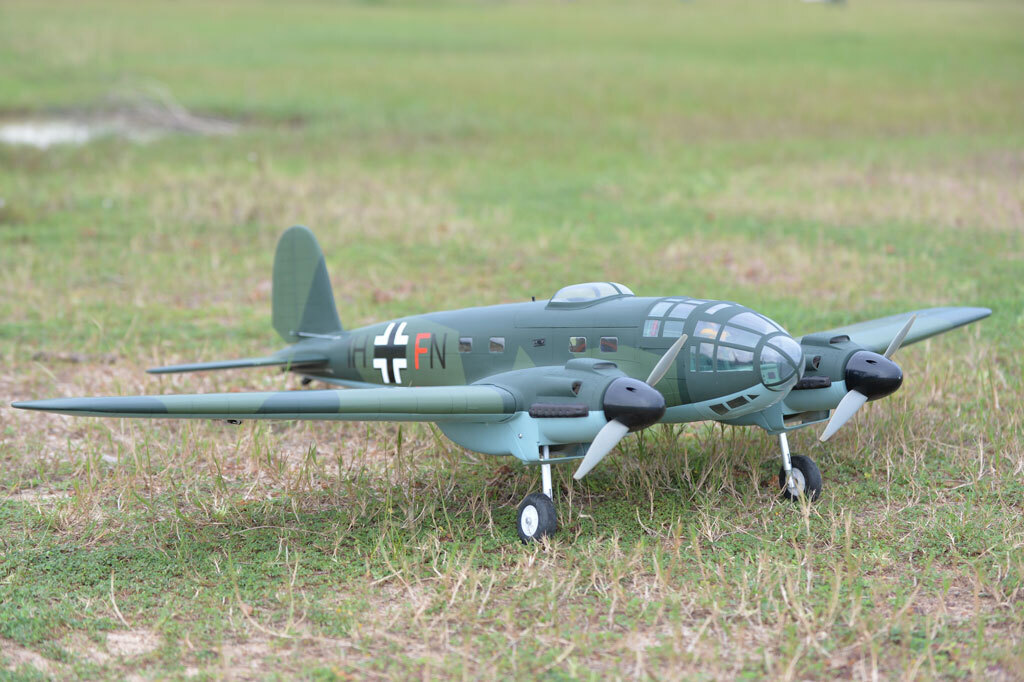

HEINKEL HE 111

Item code: BH143

Glow and EP

SPECIFICATION:

–  Wingspan: 1,750 mm (68.90 in).

–  Length: 1,280 mm (50.39 in).

–  Weight: 4.2 – 4.5 kg (9.25 – 9.92 lbs).

–  Wing area: 48.9dm2.

–  Wing loading: 92.04g/dm2.

–  Servo mount:(30 x 13.5) mm.

–  Wing type: Naca Airfoil.

– Spinner : 75mm (included) 2pcs.

–  Gear type: Electric retract gear, size: (92.2 x 51 x 30.6)mm (not included).
   Oleo struts for main gear (included).

–  Tail gear type: Spring wire for tail gear (included).

Parts listing required (not included):

–  Radio: 06 channels minimum.

–  Servo: 07 – 09 standard high torque servos size ( 29x13x30)mm.

–  Engine: 25-32  – 2 stroke (2 pcs).

–  Motor: Brushless outrunner 650 – 800W, 1000KV (2pcs).
–  Propeller: Suit with your engine.

Recommended Motor and Battery set up (not included):
–  Motor:  RIMFIRE.25.
–  Lipo cell: 3-4 Cells-LIPO 11.1V-14.8V  3,250 – 3,700 mAh (2 packs).
–  ESC: 60A (2 pcs).
–  Receiver battery: 6V/ 1200-2200mAh Lipo.

ALL BALSA – PLY WOOD CONSTRUCTION.

COVERED IN A HEAT-SHRINK FILM WITH PRINTED.

(BH-143)

SKU BH-143
Brand BLACK HORSE AIRCRAFT
