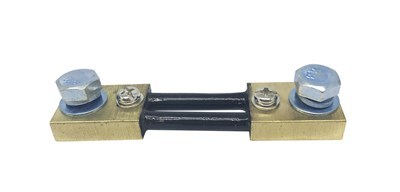

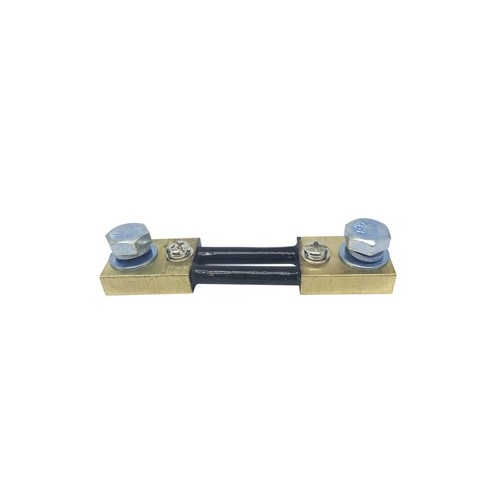

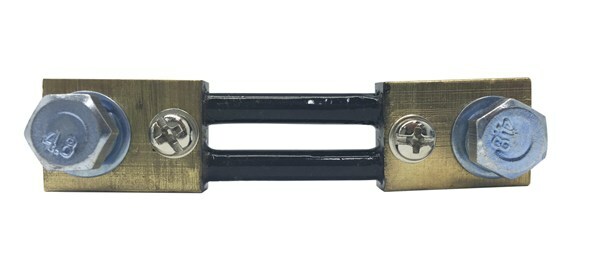

Placed in series with a high power circuit, these shunt bars allow you to measure high current draw without needing a high current ammeter. Heavy duty brass construction and hand calibrated, they include large terminals for connection of the main circuit cables and smaller terminals for connection to a meter. Suitable for use with a standard multimeter or panel meter you simply measure the millivolts across the shunt to display the current draw of the circuit. The 50mV models within the range are also compatible with many readily available power meters such as our MS6172 Digital DC Power Meter.
Specifications
Max. current 200A
Voltage at max. current 50mV
Shunt resistance 0.25mOhm
Accuracy 0.5%

SKU AM-QP5417
Model # QP5417
Barcode # 9319236977187
Shipping Weight 0.5000kg
