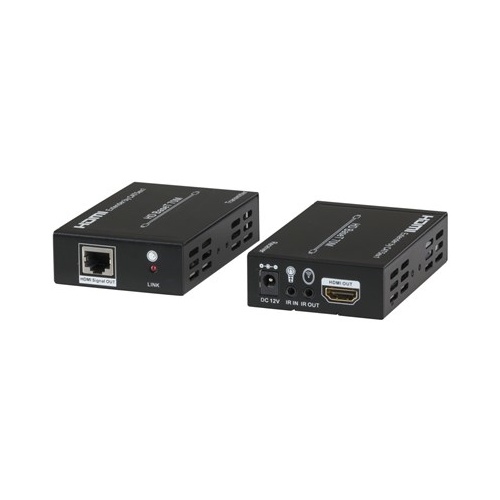

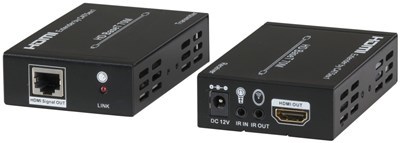

Extend UHD4K HDMI signals to a display 40m away or 1080p signals up to 70m from a HDMI source. This extender converts standard HDMI signals to HDBaseT signals and transfers them over a common Cat 5E/6 cable. This is more affordable than long HDMI cable runs and allows for greater distances between a display and source. Includes bidirectional IR control, so the source or display can be controlled from either end with your remote.

Ideal for lecture theatres, shopping centers, or reception areas.


Transmission distance:
70 metres: 1080p at 60Hz 36bit; 3D 1080p at 30Hz 36bit;
40 metres: 1080p at 60Hz 48bit; 1080p at 120Hz 24bit; 3D 1080p at 60Hz 36bit; 4K x 2K@30Hz@24bit

Specifications:
• HDMI 1.4 supported
• Power consumption max: 20W
• IR Frequency: 20kHz - 60kHz
• Video support: 480i / 480p / 720p / 1080i / 1080p / 4K
• Audio support: LCPM, Dolby True HD & DTS Master Audio, 7.1 compliant
• HDMI receiver: 1x HDMI Female port/1 x CAT6,  1x IR Transmitter/1x IR Receiver
• HDMI transmitter: 1x HDMI Female port/1 x CAT6,  1x IR Transmitter/1x IR Receiver
• Dimensions: 65(W) x 100(D) x 25(H)mm

SKU AM-AC1736
Barcode # 9319236345900
