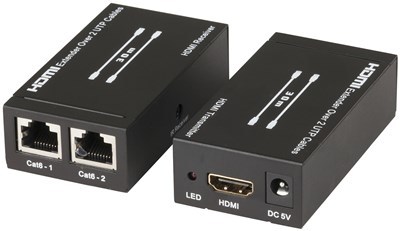

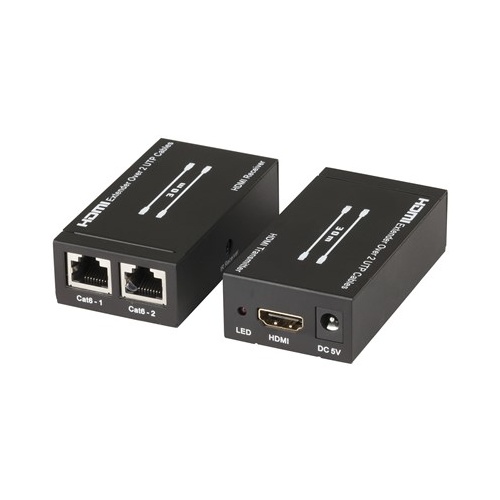

Transmit HDMI video/audio and IR over distances up to 30m over two common Cat6 cables. This is a reliable and cost-effective method for outputting a HDMI source to a distant display. Perfect for lecture halls, home theatres, or video conference rooms. Only 1 of the extenders require a 5VDC power supply (supplied).

Features:
* Embedded IR control path
* HDMI 1.3b and HDCP 1.1/DVI1.1 compliant
* Achieve 1080p from the sources up to 30m using Cat6 or 20m using Cat5e
* Can support longer distances (may incur resolution degrading)

Specifications:
* Range: 30m
* IR Frequency: 20kHz - 60kHz
* Video support: 480i / 480p / 720p / 1080i / 1080p
* Audio support: LCPM, Dolby True HD & DTS Master Audio, 7.1 compliant
* Equalisation: 8-level digital on RX
* Input: 1 x RJ45, 1 x 3.5mm(IR extender)
* Output: 1 x HDMI, 1 x 3.5mm(IR extender)
* Dimensions: 100(L) x 65(W) x 25(H)mm

SKU AM-AC1730
Barcode # 9319236245286
