This powerful device will allow you to transmit up to 4K HDMI video signals up to 50m, using standard Cat6 cable. What’s more is it even allows you to use your infrared remote control from the receiving point, so you can control the device you’re sending video from! Compatible up to HDMI 1.4, with up to 10.2Gbps bandwidth. It will also transmit the HDMI audio (if included), compatible with all standard HDMI audio including Dolby Digital and surround sound. HDCP 2.2 compliant for the latest support. No software required, simply connect everything up and go.

Features:
- Works with up to 50m cable
- Extends up to 4K video and audio
- Supports power over cable (for receiver)

Specifications:
HDMI Compliance: HDMI 1.4
HDCP Compliance: HDCP 2.2
Video Bandwidth: 10.2 Gbps
Video Resolutions: up to 4K2K@24/30Hz
Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth: 8-bit
HDMI Audio Formats: (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

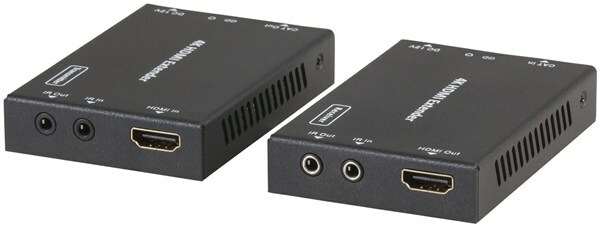

Transmitter:
Inputs:  1 x HDMI Socket
Outputs: 1 x RJ45
IR Output: 2 x 3.5mm (cable included)
Receiver:
Inputs:  1 x RJ45
Outputs: 1 x HDMI Socket
IR Receiver: 2 x 3.5mm (cable included)
Dimensions: 88(W) x 61(D) x 17(H)mm (each)
Weight: 144g (each)
Power Supply: 12VDC @ 1A (mains plugpack included)
SKU AM-AC1737
Model # AC1737
Barcode # 9319236730065
