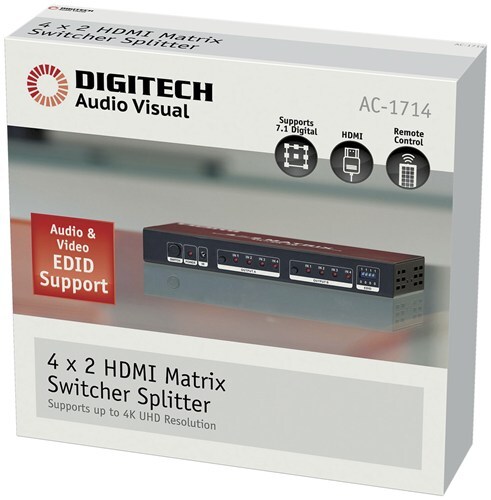

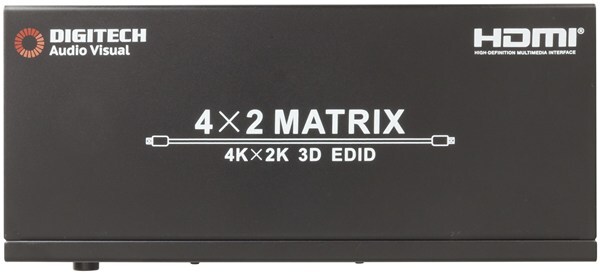

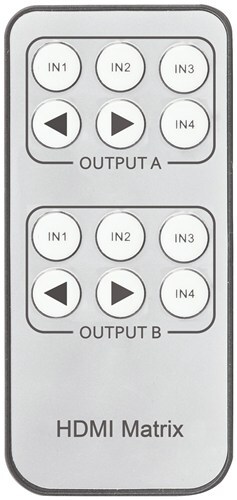

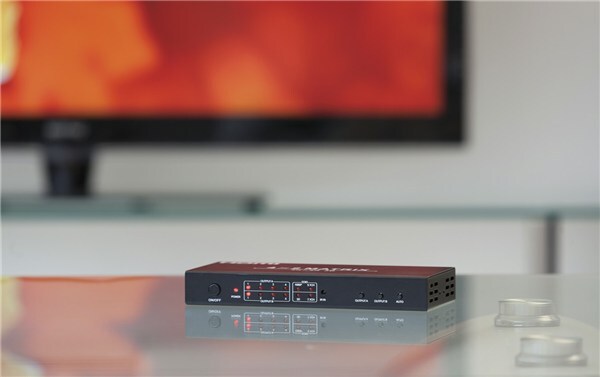

Distribute up to four HDMI sources to 2 displays simultaneously. This will add a level of convenience for households that have two TVs but don't want to buy another set of Blu-ray players, set top boxes, etc. A single Blu-ray player connected to the matrix would output it's movie to two screens. This is also great for retail service scapes, shopping centres, reception areas and foyers. Has support for all resolutions up to UHD 4K x 2K as well as 3D support and EDID so switching sources will be fast with minimal interruption. An IR remote control for switching sources is supplied.

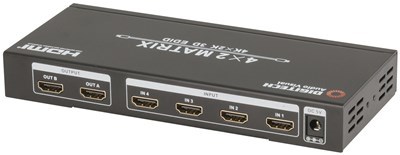

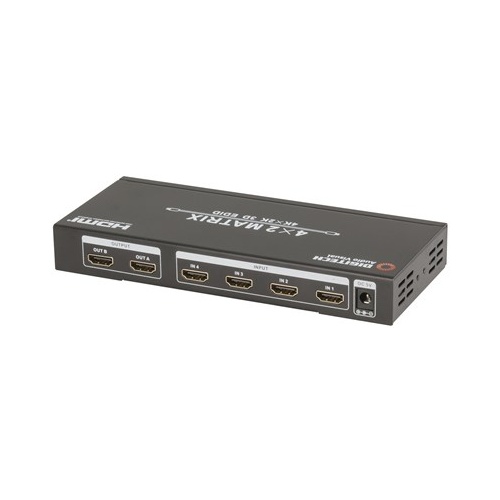

Inputs/outputs:
Inputs: 4 x HDMI
Outputs: 2 x HDMI

Audio support:
* 2.0CH
* 5.1CH
* 7.1CH
* DTS digital
* Dolby Digital
* DTS-HD and Dolby TRUE HD

Video Support:
* HDMI 1.4
* All resolutions up to UHD 4K x 2K and 3D, 297MHz/2.97Gbps Per Channel Bandwidth
* Supports 12 bit per channel deep colour

Specifications:
* Dimensions: 85(W) x 192(D) x 26(H)mm

SKU AM-AC1714
Model # AC1714
Barcode # 9319236245149
Shipping Weight 1.0000kg
