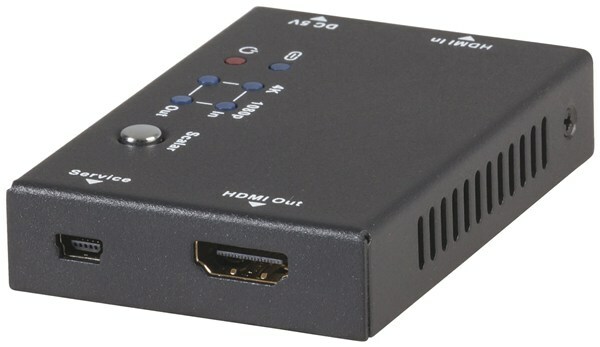

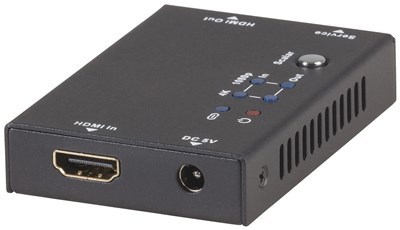

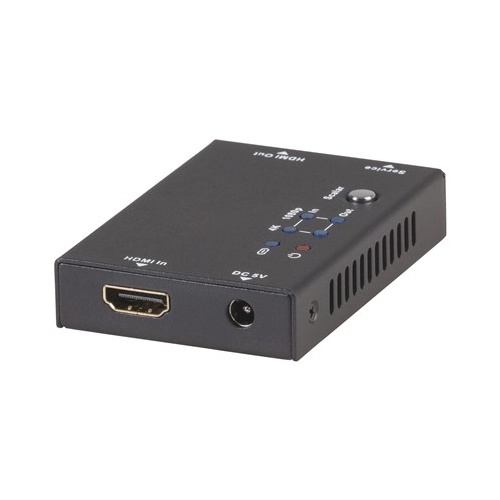

Running HDMI over long distances requires some assistance to ensure a reliable signal reaches the other end. This handy repeater will provide a boost in signal to do just that, and can also scale up / down to and from 1080p and 4K, or simply pass through. Supports the latest HDCP and HDMI specifications. Mains power supply included.

Features:
- Scale up, down, or pass-through
- Supports up to 4K2K @ 60Hz, and HDMI digital audio formats
- Maintains quality over long cable extensions

Specifications:
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2 and HDCP 1.4
Video Bandwidth: 18 Gbps
Video Resolutions: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth: 10-bit, 12-bit
HDMI Audio Formats: (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
USB: 1 x Mini-USB (firmware upgrade only)
Power: 5VDC @ 1A
Dimensions: 81(W) x 55(D) x 16(H)mm
Weight: 400g
SKU AM-AC1728
Model # AC1728
Barcode # 9319236730058
