Features
  • Printed, flat-finish UltraCote covering with accurate color and panel line detail
  • Operational split-flaps with internal linkages for scale performance and appearance
  • Accurate representation of the scale outline
  • Cowl details include carburetor intake, compressor intake and molded engine exhaust
  • Lightweight balsa and plywood construction with airfoiled tail surfaces

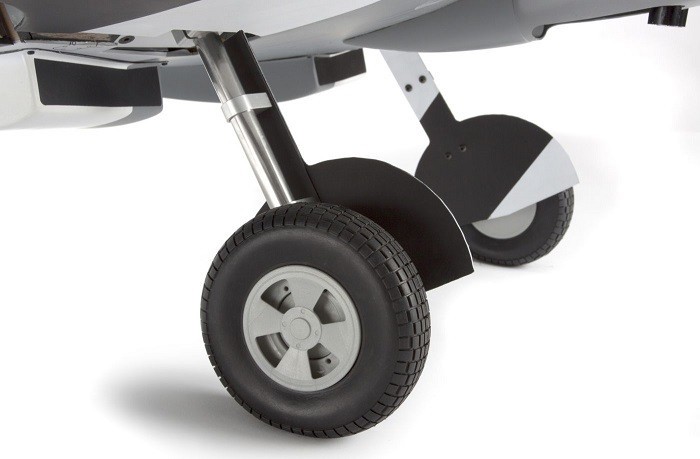

  • Includes fixed landing gear, gear doors, scale tires and 4-spoke Spitfire wheels
  • Painted aluminum spinner included

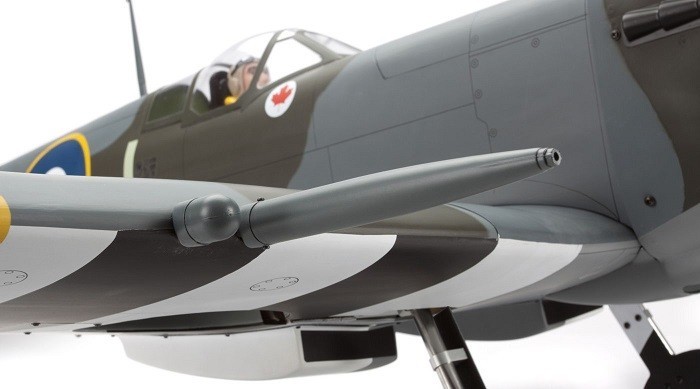

  • Removable wing cannons and radio antenna detail included

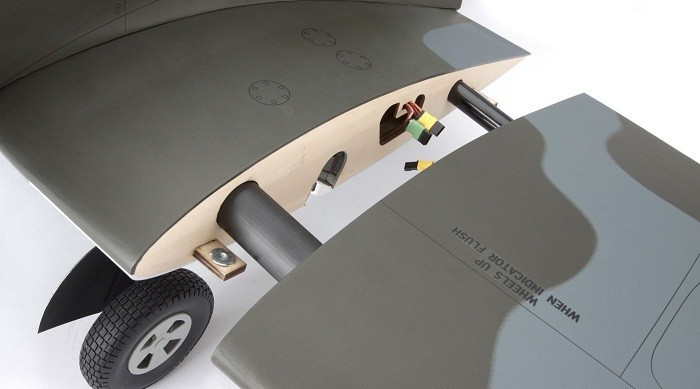

  • Three-piece, plug-in wings simplify transportation and assembly
  • Molded wing radiators are finished with matching paint
  • Removable magnetic top-hatch provides access and conceals power switches
  • Includes two scale decal and identification number sets
  • Painted, one-piece canopy and detailed cockpit
  • Complete, high-quality hardware package included
  • Optional electric retracts with struts available
  • Optional electric motor installation kit available

The Supermarine Spitfire Mk IXc was the premier interceptor of the series used by the Royal Air Force during WWII. What set the MK IXc apart was its ability to match the startling performance of the Focke-Wulf Fw-190 unleashed by the Luftwaffe. So inspired by the maneuverability, reliability and top speed performance of the Mk IXc, Spitfire pilots even tangled with invading Me-262 jets where their 20mm cannon proved to be a tremendous asset.

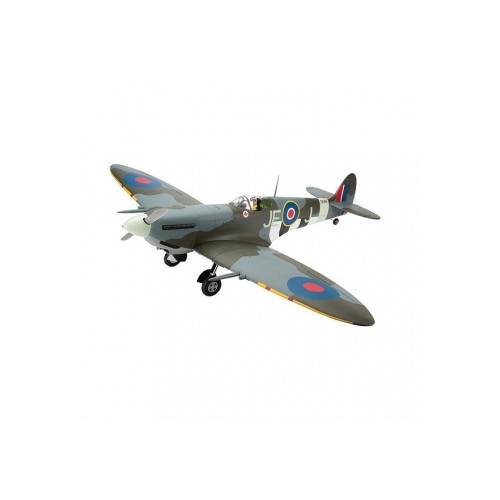

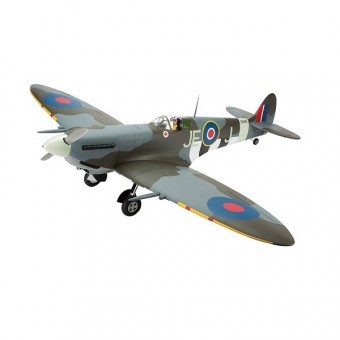

The Hangar 9® Spitfire Mk IXc 30cc ARF captures the supremacy, grace and scale outline in a way that makes the famed RAF weapon of choice come alive, especially for RC pilots who enjoy the 30cc gas engine and the popularity it is earning. Loaded with realistic scale details and the option to drop in E-flite® electric retracts, the crowning feature that sets this fighter apart from all other warbirds is the printed covering in authentic Mk IXc flat camouflage colors. Using genuine UltraCote® material, the appearance rivals an expertly applied paint appearance, yet offers the convenience and durability of UltraCote film. Plus you get fine-point panel and marking detail that’s as authentic as it gets. Like the full-scale pilots of the Mk IXc back in the day, you’ll truly appreciate the state-of-the-art engineering of this Hangar 9 model in the air.

What you Need

Internal Combustion Setup

  • Radio. We recommend the Spektrum DX8 (SPMR88101)
  • Receiver. We recommend the Spektrum AR8000 (SPMAR8000)
  • Servos. We recommend 8 Spektrum A6180 servos (SPMSA6180)
  • Receiver Pack. We recommend the Thunder Power G8 2700mAh (TPB2700-2SPPRX)
  • Ignition Battery. We recommend the Thunder Power G8 2700mAh (TPB2700-2SPPRX)
  • Charger. We recommend the Imax B6 (IMAXB6)
  • Engine. We recommend the Evolution 33GX (EVOE33GX)
  • Propeller. We recommend the APC 18 x 8 competition propeller (APCLP18080)

Electric Power

  • Radio. We recommend the Spektrum DX8 (SPMR88101)
  • Receiver. We recommend the Spektrum AR8000 (SPMAR8000)
  • Servos. We recommend 7 Spektrum A6180 servos (SPMSA6180)
  • Motor. We recommend the E-Flite Power 160 (EFLM4160A)
  • ESC. We recommend the Castle Creations Phoenix Edge 120 (CSE010010400)
  • Battery. We recommend 2 Thunder Power G8 5000mAh LiPo batteries (TPB5000-6SPF70)
  • Receiver Pack. We recommend the Thunder Power G8 2700mAh (TPB2700-2SPPRX)
  • Charger. We recommend the Imax B6 (IMAXB6)
  • Propeller.
Wingspan
81.0 in (205 cm)
Overall Length
64.5 in (164 cm)
Wing Area
1165 sq. in. (75.1 sq. dm.)
Flying Weight
16.5-18.5 lb (7.50-8.40 kg)
Engine Size
30-40cc 2-stroke gas/petrol; 30cc 4-stroke gas/petrol; 1.80-2.20 4-stroke glow
Motor Size
Power 160
Radio
6+ channel radio system required
Servos
8 servos required (7 for EP)
Recommended Receiver Battery
2700mAh 6.0V NiMH receiver pack
Trim Scheme Colors
Printed UltraCote
CG (Center of Gravity)
4.75 in (121mm) back from the leading edge of wing at fuselage
Prop Size
17- to 19-inch diameter propeller
Spinner Size
4.25 in (108mm)
Speed Control
85-amp HV brushless
Recommended Motor Battery
37.0V 10S 5000mAh LiPo
Flaps
Yes
Retracts
Optional
Control Throw (Ailerons)
Low: 16mm up, 14mm down, 20% expo; High: 25mm up, 22mm down, 20% expo
Control Throw (Elevator)
Low: 10mm up, 8mm down, 20% expo; High: 17mm up, 14mm down, 20% expo
Control Throw (Rudder)
Low: 32mm right/left, 20% expo; High: 51mm right/left, 20% expo
Control Throw (Flaps)
Mid: 22mm down; Full: 67mm down
Is Assembly Required
Yes
Plane Type
Scale Military
Power Plant Size
1.6-2.4 2-Cycle Gas
Recommended Environment
Outdoor
Fuel Type
Gas

SKU HAN4495
Barcode # HAN4495
Brand Hangar 9
Shipping Weight 5.0000kg
